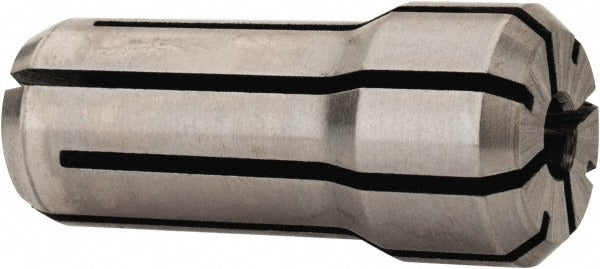

Parlec DA200-0156 Double Angle Collet DA200 5/32 in

Product Description

The PARLEC DA200-0156 is a Double Angle collet in the DA200 series, designed for use in CNC machining centers and milling applications where precise tool holding is required. With a clamping capacity ranging from 0.1406 to 0.1562 decimal inches and an overall length of 1.187 inches, this collet delivers consistent grip on 5/32-inch round shank cutting tools. The 0.539-inch overall diameter fits standard DA200 collet chucks. It is installed by machinists and toolroom technicians as part of a collet chuck assembly on vertical and horizontal machining centers.

This collet is suited for production and job-shop environments running small-diameter end mills, drills, reamers, and similar tooling. The DA200 series is a widely used double angle collet standard in metalworking shops handling light to moderate cutting loads. It is appropriate for both production runs and precision prototype work where repeatable tool runout is critical.

Key Features

• Double angle collet design provides secure clamping at both front and rear contact angles
• Nominal size of 5/32 inch with a maximum collet capacity of 0.1562 decimal inches
• Overall length of 1.187 inches for proper seating in DA200-compatible collet chucks
• Overall diameter of 0.539 inches matches DA200 series collet chuck specifications
• Minimum collet capacity of 0.1406 decimal inches accommodates slight undersize shanks

Compatibility

Designed as an OEM-style replacement or standard tooling component for DA200 series collet chuck systems used in CNC milling and machining center setups.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the spindle fully powered down and locked out per applicable machine safety procedures. Clean the collet bore and chuck taper thoroughly before seating the collet to prevent runout caused by chips or debris. Do not exceed the stated clamping capacity range, as over-clamping an undersize shank or forcing an oversize shank can damage the collet and reduce tool holding accuracy. Torque the collet nut to the chuck manufacturer's specification using the correct spanner wrench.
