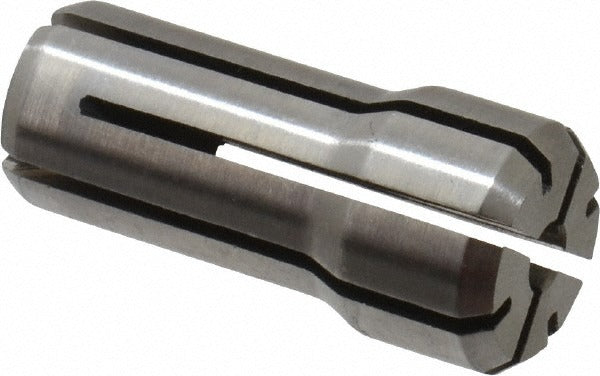

Parlec DA200-0140 Double Angle Collet DA200 9/64 in

Product Description

The PARLEC DA200-0140 is a Double Angle (DA) collet in the DA200 series, designed to hold cutting tools and workpieces with precision in milling and drilling applications. It accepts shank diameters from 0.1250 to 0.1406 inches, making it suited for 9/64 inch tooling. The collet measures 1.187 inches in overall length and 0.539 inches in overall diameter. Machinist technicians and CNC setup personnel use DA collets to secure end mills, drills, and similar tools in compatible DA collet chucks. The double angle design provides consistent clamping force and accurate tool runout for close-tolerance work.

This collet is intended for use in DA200 series collet chuck systems found in machining centers and manual mills. It is well suited for light to medium-duty material removal operations where a secure, repeatable tool grip is required. Typical applications include end mill holding, drill bit retention, and similar small-diameter tooling setups in both production and job-shop environments.

Key Features

• DA200 collet series for use with compatible DA200 collet chucks
• Clamping range: 0.1250 to 0.1406 inches for 9/64 inch tooling
• Overall length of 1.187 inches for consistent projection and fit
• Overall diameter of 0.539 inches
• Double angle design for uniform clamping force and reduced tool runout
• Weighs 1 pound

Compatibility

Designed as an OEM-style replacement and standard fitment collet for DA200 series collet chuck systems requiring 9/64 inch tool holding capacity.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician with the spindle fully stopped and the machine in a safe, locked-out state. Clean the collet bore and chuck taper before seating the collet to ensure proper contact and minimize runout. Use the appropriate collet nut wrench for the DA200 series and tighten to the chuck manufacturer's specified procedure. Do not use a collet outside its rated clamping range, as this can damage the collet, chuck, or tooling.
