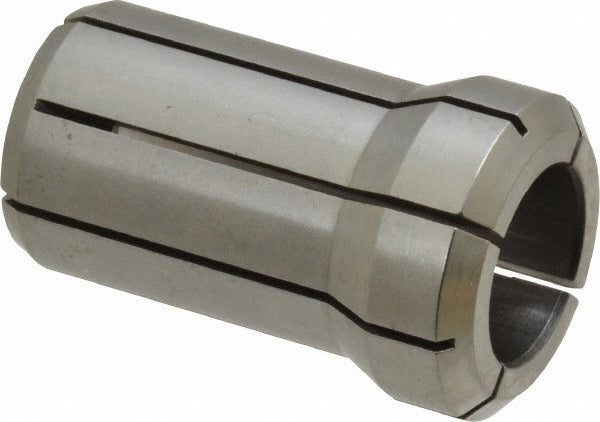

Parlec DA180-0625 Double Angle Collet 5/8 in DA180

Product Description

The PARLEC DA180-0625 is a Double Angle collet in the DA180 series, designed for use in compatible collet chucks on milling machines and machining centers. It accepts tool shanks up to 0.625 inches in diameter, with a minimum collet capacity of 0.6094 inches, giving it a usable clamping range suited for close-tolerance work. The overall length is 1.639 inches and the overall diameter measures 1.025 inches. This collet is installed by machinists and toolroom technicians who require secure, repeatable tool holding during cutting operations.

The DA180-0625 is suited for production machining and job shop environments where DA180-series collet chucks are in use. It handles 5/8-inch shank tooling including end mills, drill blanks, and similar round-shank cutting tools. Typical applications include vertical machining centers, knee mills, and other spindle-driven equipment configured for DA180 collet systems. This collet is appropriate for both production runs and general-purpose toolroom work where consistent grip and runout performance are required.

Key Features

• DA180 collet series for use with DA180-compatible collet chucks
• Accepts tool shanks from 0.6094 inches to 0.625 inches for a precise clamping range
• Overall length of 1.639 inches for compact, low-profile tool holding
• Overall diameter of 1.025 inches for standard DA180 chuck fitment
• Double angle collet design provides secure grip and reduced runout

Compatibility

Designed for use with DA180-series collet chucks that accept double angle collets with an overall diameter of 1.025 inches and an overall length of 1.639 inches.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the machine spindle before inserting or removing collets. Ensure the collet bore and chuck are clean and free of chips or debris before seating the collet. Tighten the collet nut to the chuck manufacturer's specified procedure using the appropriate spanner wrench.
