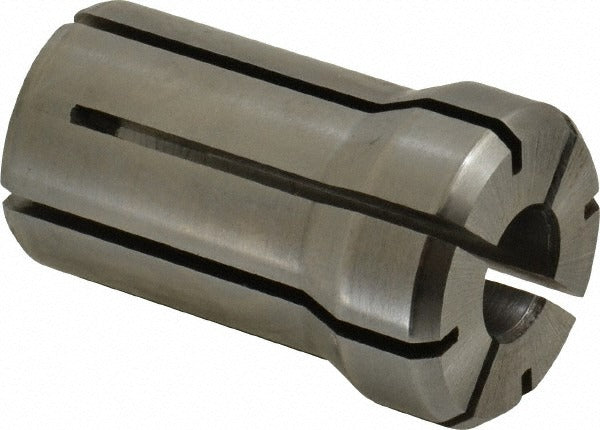

Parlec DA180-0406 Double Angle Collet DA180 13/32

Product Description

The PARLEC DA180-0406 is a double angle collet in the DA180 series, designed for use in CNC machining centers and milling applications that require precise workholding and tool retention. This collet accepts shank diameters ranging from 0.3906 inches minimum to 0.4062 inches maximum, making it suited for 13/32-inch tooling. With an overall length of 1.639 inches and an overall diameter of 1.025 inches, it fits standard DA180-style collet chucks. Machinists and CNC operators install this collet when running end mills, drills, or other round-shank tools that fall within the specified capacity range.

The DA180-0406 is used in production and job-shop environments running vertical or horizontal machining centers equipped with DA180 collet chuck systems. It is appropriate for light to moderate material removal operations where consistent grip and runout accuracy are required. This collet is installed by machinists and CNC setup technicians as part of routine tooling changes or when building out a tooling inventory for a specific diameter range.

Key Features

• DA180 collet series - fits DA180-style collet chucks
• Collet capacity range: 0.3906 inches minimum to 0.4062 inches maximum
• Overall length of 1.639 inches for accurate tool projection control
• Overall diameter of 1.025 inches
• Double angle design provides consistent clamping force across the collet bore

Compatibility

Designed as an OEM-style replacement and standard tooling collet for DA180-series collet chuck systems.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Always power down and lock out the machine spindle before changing collets. Ensure the collet chuck bore and collet taper surfaces are clean and free of chips or debris before seating. Do not exceed the stated collet capacity range, as oversizing or undersizing the clamped shank can compromise grip force and tool runout.
