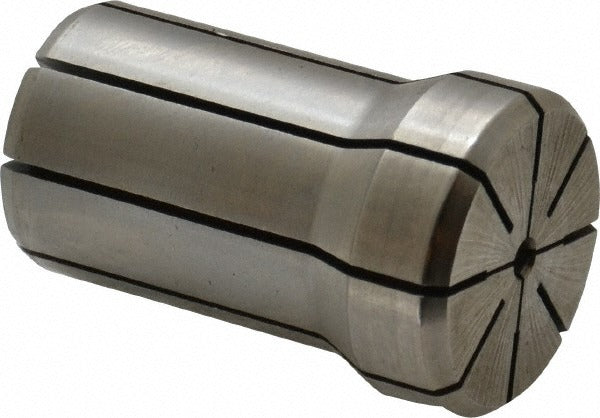

Parlec DA180-0109 Double Angle Collet DA180 7/64 Inch

Product Description

The PARLEC DA180-0109 is a double angle collet in the DA180 series, designed for precision workholding in CNC machining and milling operations. It accepts shank diameters from 0.0938 inches minimum to 0.1094 inches maximum, making it suited for 7/64 inch tooling. The collet measures 1.639 inches overall length and 1.025 inches overall diameter. Machining professionals and toolroom technicians install this collet into compatible DA180 collet chucks to achieve consistent, repeatable tool clamping during cutting operations.

This collet is used in metalworking and manufacturing environments where DA180-style collet chucks are the standard workholding platform. Typical applications include production milling, drilling, and light-duty cutting with small-diameter end mills, drills, or round-shank tooling in the 7/64 inch range. It is suited for both manual toolroom setups and production CNC machining centers where consistent grip and minimal runout are required.

Key Features

• DA180 collet series for use with compatible DA180-style collet chucks
• Accepts tool shanks from 0.0938 inches to 0.1094 inches capacity range
• 1.639 inches overall length for standard DA180 chuck depth compatibility
• 1.025 inches overall diameter for proper chuck seating
• Double angle design provides secure, centered clamping on round-shank tooling

Compatibility

Designed as an OEM-style collet for use with DA180 series collet chucks accepting 7/64 inch tooling with a shank diameter up to 0.1094 inches.

Installation Notes

Installation is performed by qualified machining technicians. The spindle must be fully stopped and the machine powered down before changing collets. Collet, chuck bore, and tool shank should be clean and free of chips or oil before assembly to ensure accurate seating and minimize runout. Tighten the collet nut to the chuck manufacturer's recommended procedure using the appropriate spanner wrench.
