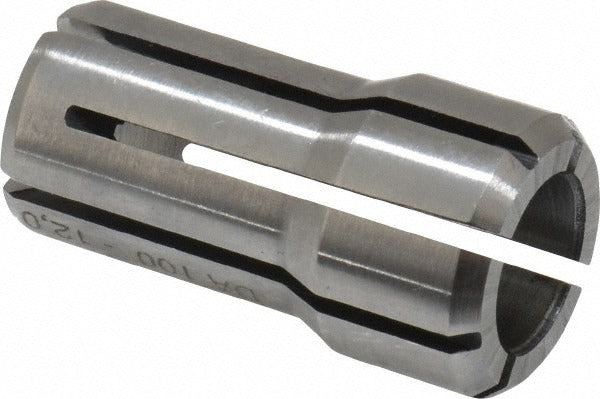

Parlec DA100-12MM Double Angle Collet 12mm DA100

Product Description

The PARLEC DA100-12MM is a Double Angle Collet designed for use in DA100-series collet chucks on milling and drilling machine tools. It features a 12mm (0.4724 inch) bore size and an overall length of 1.437 inches (36.50mm), with an overall diameter of 0.769 inches. This collet provides secure, concentric tool holding for cutting tools in CNC machining centers and manual milling machines. It is installed and serviced by machinists, toolroom technicians, and CNC setup personnel working in production and job-shop environments.

The DA100-12MM collet fits DA100-series collet chuck systems and is suited for holding round-shank cutting tools in both production machining and toolroom applications. Its double-angle design distributes clamping force evenly across the tool shank, helping maintain concentricity during high-speed cutting operations. This collet is a standard single-unit replacement or addition to existing DA100 tooling setups in shops running metric tooling.

Key Features

• 12mm bore size (0.4724 inches) for metric shank cutting tools
• DA100 collet series for compatibility with DA100-style collet chucks
• Overall length of 1.437 inches (36.50mm) for consistent tool projection
• Overall diameter of 0.769 inches for proper chuck seating
• Double-angle collet design for even clamping force distribution

Compatibility

Designed as an OEM-style replacement or addition for DA100-series collet chuck systems accepting 12mm round-shank tooling.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and de-energize the machine spindle before changing collets. Ensure the collet bore, chuck body, and tool shank are clean and free of chips or debris before assembly. Consult the machine tool manufacturer guidelines for proper torque and clamping procedures when seating the collet chuck nut.
