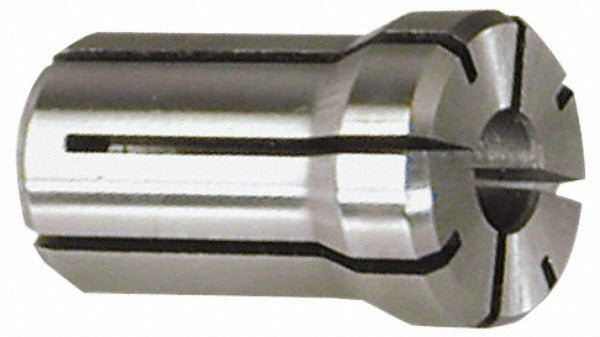

Parlec DA100-11MM Double Angle Collet DA100 11mm

Product Description

The PARLEC DA100-11MM is a Double Angle collet in the DA100 series, designed for use in CNC machining centers and milling applications that require precise tool holding. With an 11 mm (0.4331 inches) clamping bore and an overall length of 1.437 inches (36.50 mm), this collet provides consistent gripping force and repeatable tool positioning. The overall diameter measures 0.769 inches. Installed by machinists and tool room technicians, it is a direct-fit component for spindle systems and toolholders that accept DA100 series collets.

This collet is suited for light to medium milling, drilling, and reaming operations where a double angle collet design is specified. It fits production and job-shop environments running CNC vertical machining centers or manual milling machines equipped with DA100 compatible collet chucks. The 11 mm bore size accommodates round-shank tooling at that diameter.

Key Features

• DA100 collet series for compatibility with DA100 collet chucks
• 11 mm (0.4331 inches) clamping bore for round-shank tooling
• Overall length of 1.437 inches (36.50 mm) for consistent projection
• Overall diameter of 0.769 inches
• Double angle collet design for secure, centered clamping
• 0.5 pound weight supports balanced tool assembly

Compatibility

Designed as an OEM-style replacement or standard tooling component for DA100 series collet chucks used in CNC and manual milling machine applications.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle or collet chuck is fully stopped and de-energized before inserting or removing the collet. Inspect the collet bore and chuck taper for debris or damage before seating. Do not exceed the rated clamping bore size when selecting tooling shank diameters.
