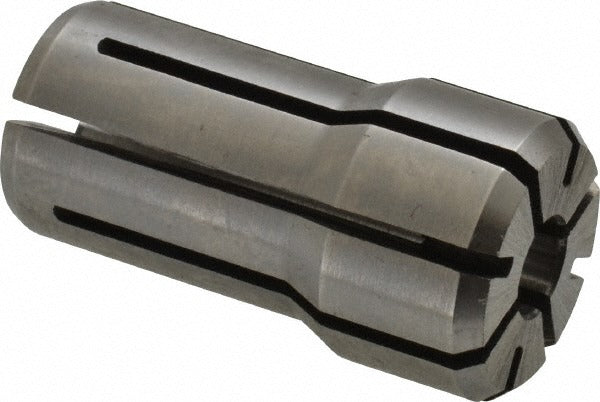

Parlec DA100-0265 Double Angle Collet 17/64 in DA100

Product Description

The PARLEC DA100-0265 is a Double Angle Collet in the DA100 series, designed for secure tool holding in CNC machining and milling applications. It accepts shank diameters from 0.2500 inches minimum to 0.2656 inches maximum, covering the 17/64 inch nominal size. With an overall length of 1.437 inches and an overall diameter of 0.769 inches, this collet fits DA100-style collet chucks and provides the clamping rigidity required for precision cutting operations. It is installed and serviced by machinists and tool room technicians in shop environments.

This collet is suited for use in production machining centers, manual mills, and CNC turning and milling setups where DA100-compatible toolholding is specified. The double angle design distributes clamping force evenly around the tool shank, helping maintain concentricity during high-speed cutting. Typical applications include end mill, drill, and reamer retention in light to medium material removal operations.

Key Features

• DA100 collet series for use with DA100-style collet chucks
• Nominal size 17/64 inch with a capacity range of 0.2500 to 0.2656 inches
• Overall length of 1.437 inches for accurate seating depth in compatible chucks
• Overall diameter of 0.769 inches
• Double angle clamping geometry promotes even gripping force and concentricity
• Weighs 1 pound

Compatibility

Designed as an OEM-style replacement and standard fitment collet for DA100-series collet chucks used in CNC and manual milling applications.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Always ensure the spindle is fully stopped and the machine is powered down before changing or seating collets. Clean the chuck bore and collet taper surfaces before installation to prevent runout caused by debris. Do not exceed the collet capacity range when inserting tool shanks, as oversizing the collet can cause premature wear or loss of clamping force.
