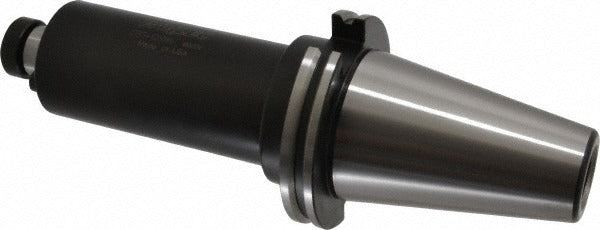

Parlec C50-10SM6 Shell Mill Holder CAT50 1 Inch Pilot

Product Description

The PARLEC C50-10SM6 is a CAT50 taper shank shell mill holder designed for use on CNC machining centers. It accepts shell mills with a 1-inch pilot diameter and features a 2.25-inch nose diameter with a 6-inch projection from flange to nose end. The lock screw thread size is 1/2-20, using lock screw 10LS. This holder is balanced to 30,000 RPM and maintains a TIR of 0.0002 inches, making it suitable for high-speed, precision face milling operations. Machinists and CNC operators install this holder as a direct-mount interface between the machine spindle and the shell mill cutter.

The C50-10SM6 is used on CAT50-spindle CNC mills and machining centers in metalworking environments, both job shop and production. The 6-inch projection makes it practical for setups that require extended reach from the spindle face. It accommodates shell mill cutting diameters ranging from 2.25 inches to 2.75 inches. Through-coolant is not supported on this holder. Typical applications include face milling, shoulder milling, and surface finishing operations on ferrous and non-ferrous materials.

Key Features

• CAT50 taper shank for direct spindle mounting on CAT50 machining centers
• 1-inch pilot diameter with 2.25-inch nose diameter for shell mill retention
• 6-inch flange-to-nose projection for extended reach setups
• Balanced to 30,000 RPM for stable high-speed operation
• TIR of 0.0002 inches for precise cutter runout control
• 1/2-20 lock screw thread with included 10LS lock screw

Compatibility

Compatible with shell mills having a 1-inch pilot diameter and cutting diameters from 2.25 inches to 2.75 inches, used in CAT50 spindle machining centers.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before mounting or removing the holder. Inspect the spindle taper and holder taper for contamination or damage before seating. Torque the drawbar and lock screw per the machine tool manufacturer's specifications, which are not supplied with this holder.
