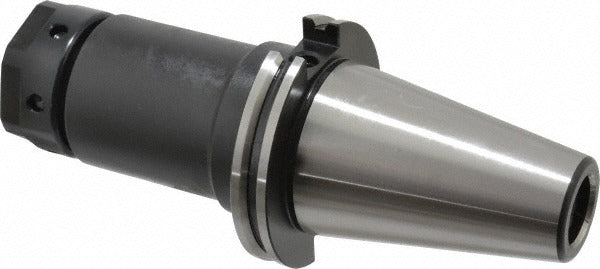

Parlec C50-10SC5 Collet Chuck CAT50 Single Angle Tg

Product Description

The PARLEC C50-10SC5 is a single angle collet chuck designed for precision CNC milling and machining operations. It accepts TG and PG100 series collets with a capacity range of 0.031 to 1 inch, covering a wide variety of cutting tool shank sizes. The chuck features a CAT50 taper shank for direct spindle mounting and delivers a total indicator runout (TIR) of 0.0002 inches, supporting tight-tolerance work. A through-coolant design routes coolant directly through the spindle to the cutting zone. At 9.5 inches overall length with a 5.5-inch projection, this chuck is suited for deep-reach and general-purpose machining setups.

This collet chuck is used in production and job-shop CNC machining centers equipped with CAT50 spindles. It is appropriate for horizontal and vertical milling applications where consistent runout control and reliable coolant delivery are required. The TG and PG100 collet system it accommodates is widely used across industrial machining environments for high-speed cutting, drilling, and reaming operations with straight-shank tooling.

Key Features

• Single angle collet design compatible with TG and PG100 collet series
• CAT50 taper shank for direct CNC machining center spindle mounting
• Collet capacity range: 0.031 to 1 inch (25.40 mm maximum)
• TIR of 0.0002 inches for precision runout control
• 5.5-inch projection and 9.5-inch overall length for deep-reach applications
• Through-spindle coolant delivery routes fluid directly to the cutting edge
• Nose diameter of 2.44 inches

Compatibility

Designed for use with TG and PG100 series collets in CAT50 spindle machining centers. Compatible with straight-shank cutting tools from 0.031 to 1 inch in diameter.

Installation Notes

Installation and removal should be performed by a qualified machinist or CNC tooling technician following the machine tool manufacturer's spindle interface procedures. Ensure the machining center spindle is fully stopped and locked before inserting or removing the chuck. Verify coolant port alignment when through-spindle coolant is in use. Inspect the CAT50 taper and chuck bore for contamination or damage before each tool change to maintain runout integrity.
