Parlec C40-75SM4 Shell Mill Holder CAT40 0.75 in Pilot

Product Description

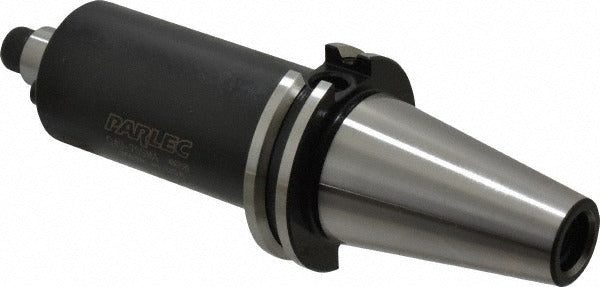

The PARLEC C40-75SM4 is a CAT40 taper shank shell mill holder designed for secure, accurate mounting of shell mill cutters in machining centers. The holder features a 0.75 inch pilot diameter and a 1.75 inch nose diameter, with a projection from flange to nose end of 4.0 inches. Total indicated runout (TIR) is held to 0.0002 inches, supporting consistent cutter engagement and surface finish quality. Balanced to 30,000 RPM, this holder is suited for high-speed machining applications. The lock screw thread size is 3/8-24, compatible with the included 75LS lock screw. Installed by machinists and CNC toolroom technicians.

This holder is used in CNC vertical and horizontal machining centers equipped with a CAT40 spindle interface. It accepts shell mills with cutting diameters ranging from 1.75 inches to 2 inches. Typical applications include face milling and surface finishing operations in production and job shop environments where close TIR tolerances and high spindle speeds are required.

Key Features

• CAT40 taper shank interface for compatibility with standard CAT40 spindles
• 0.75 inch pilot diameter with 1.75 inch nose diameter for secure shell mill seating
• TIR of 0.0002 inches for precise cutter concentricity
• Balanced to 30,000 RPM for high-speed machining operations
• 3/8-24 lock screw thread with 75LS lock screw included
• 4.0 inch projection from flange to nose end for clearance in typical setups

Compatibility

Designed for use with shell mill cutters in the 1.75 inch to 2 inch cutting diameter range, mounted in machining centers with a CAT40 spindle interface. Through coolant is not supported by this holder.

Installation Notes

Installation is performed by a qualified machinist or CNC toolroom technician. Ensure the spindle and all associated tooling are fully powered down and locked out before loading or unloading the holder. Clean the CAT40 taper and spindle bore thoroughly before seating to avoid seating errors that can affect TIR. Torque the retention knob and lock screw to the spindle and tool manufacturer specifications using calibrated tooling.
