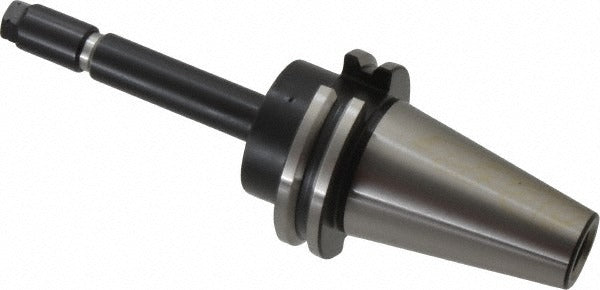

Parlec C40-30DC5 DA300 Collet Chuck CAT40 Through Coolant

Product Description

The PARLEC C40-30DC5 is a DA300 series double angle collet chuck designed for precision CNC milling and machining center applications. Built on a CAT40 taper shank, this chuck accepts double angle collets in the DA300 series with a capacity range of 0.0313 to 0.25 inches, covering a wide spread of small-diameter cutting tools. Projection measures 5.15 inches from the spindle face, and the chuck holds a TIR of 0.0004 inches for repeatable, accurate tool runout. Through-coolant capability routes coolant directly through the spindle to the cutting zone. Machining centers running high-speed operations with small-diameter end mills, reamers, or drills will see consistent performance from this toolholder. Weight is 3 pounds.

This chuck is suited for production and job-shop CNC machining environments where DA300 double angle collets are the preferred workholding standard. The CAT40 taper shank interfaces directly with CAT40-compatible spindles found on a wide range of vertical and horizontal machining centers. The through-coolant design supports high-pressure coolant delivery, making this chuck appropriate for deep-cavity milling, long-reach operations, and materials that generate significant heat at the cutting edge. Installation and tool changes are performed by qualified CNC setup technicians or machinists.

Key Features

• DA300 double angle collet system with 0.0313 to 0.25 inch capacity range
• CAT40 taper shank for direct spindle interface on CAT40-equipped machining centers
• 5.15 inch projection provides reach for deep-cavity and extended-tool applications
• 0.0004 inch TIR ensures tight runout tolerance for precision cutting operations
• Through-spindle coolant routing delivers coolant directly to the cutting zone
• Overall length of 7.837 inches with a 0.62 inch nose diameter

Compatibility

Designed for use with DA300 series double angle collets on CAT40-spindle CNC machining centers. Accepts collets sized for tool shanks from 0.0313 to 0.25 inches.

Installation Notes

Installation and removal of this toolholder should be performed by a qualified machinist or CNC setup technician following the machine tool manufacturer's spindle interface procedures. Always power down and lock out the spindle before changing toolholders. Use a calibrated torque wrench and the appropriate retention knob or drawbar specification for the host machine. Verify TIR with a dial test indicator after seating the chuck to confirm proper spindle contact before commencing a cut.
