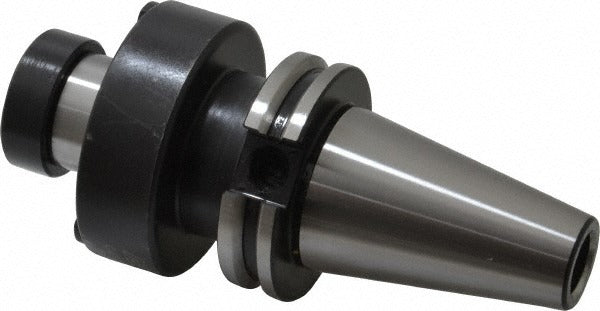

Parlec C40-12SM2 Shell Mill Holder CAT40 1.25 in Pilot

Product Description

The PARLEC C40-12SM2 is a CAT40 taper shank shell mill holder designed for use on CNC machining centers. It accepts shell mills through a 1.25-inch pilot diameter and features a 2.75-inch nose diameter with a 2.25-inch projection from flange to nose end. The holder is balanced to 30,000 RPM, making it suitable for high-speed milling operations. Lock screw thread size is 5/8-18, using lock screw model 12LS. Total Indicated Runout (TIR) is rated at 0.0002 inches, delivering the concentricity precision that production milling work demands. Installed by CNC machinists and tool-crib technicians in job shop and production environments.

This shell mill holder is used in vertical and horizontal machining centers equipped with CAT40 spindles. It is sized for shell mill cutting diameters ranging from 3 inches to 3.5 inches. Typical applications include face milling, shoulder milling, and surfacing operations on ferrous and non-ferrous materials. The CAT40 taper is a widely adopted standard in North American machining shops running medium-to-large VMCs and HMCs.

Key Features

• CAT40 taper shank for compatibility with standard CAT40 spindles
• 1.25-inch pilot diameter for positive shell mill registration
• 2.25-inch projection from flange to nose end for clearance in most setups
• Balanced to 30,000 RPM for high-speed milling applications
• TIR of 0.0002 inches for tight concentricity control
• 5/8-18 lock screw thread with 12LS lock screw included

Compatibility

Designed for use with shell mills having a 1.25-inch pilot bore and cutting diameter range of 3 inches to 3.5 inches, mounted in CAT40 spindle machines. Through coolant is not supported on this holder.

Installation Notes

Installation and tool changes should be performed by a qualified CNC machinist with the machine spindle fully stopped and the control in an E-stop or locked-out state. Use a proper CAT40 pull stud matched to the machine spindle draw bar specification before mounting. Torque the lock screw to the shell mill manufacturer's specification using the correct hex key. Verify TIR with a dial indicator after mounting before initiating any cut.
