Parlec C40-10SC6 Collet Chuck CAT40 Single Angle Tg

Product Description

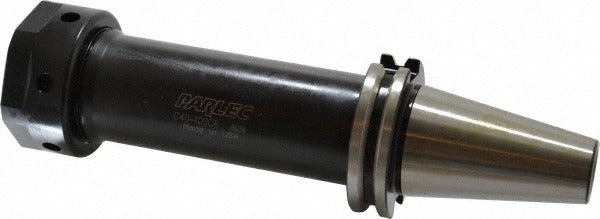

The PARLEC C40-10SC6 is a single angle collet chuck designed for precision machining applications on CAT40 taper spindles. It accepts TG and PG100 series collets with a capacity range of 0.0313 to 1 inch, covering a broad range of tooling diameters. The chuck features a 6.5-inch projection from gauge line and delivers a maximum TIR of 0.0002 inches, making it suitable for applications where runout control is critical. Through-spindle coolant capability routes coolant directly to the cutting zone. Licensed machinists and tooling setup technicians are the primary installers of this chuck in CNC machining center environments.

This chuck is suited for horizontal and vertical CNC machining centers equipped with CAT40 spindles. The TG and PG100 collet system is widely used in production environments requiring reliable tool retention across a range of shank diameters. The 6.5-inch projection accommodates deep-reach applications where standard-length holders would interfere with workpiece features or fixtures. Through-coolant delivery improves chip evacuation and tool life in ferrous and non-ferrous machining operations.

Key Features

• Collet capacity range from 0.0313 to 1 inch supports a wide variety of tool shank sizes
• Maximum TIR of 0.0002 inches for tight runout control in precision operations
• 6.5-inch projection for extended reach into deep cavities or complex fixtures
• Through-spindle coolant directs fluid to the cutting edge for improved chip clearing and thermal management
• Compatible with TG and PG100 series single angle collets
• CAT40 taper shank interfaces with the most common CNC machining center spindle standard in North American shops

Compatibility

Designed for use with CAT40 taper spindle machining centers. Accepts TG series and PG100 series single angle collets with tool shank diameters from 0.0313 to 1 inch.

Installation Notes

Installation and removal should be performed by a qualified machinist or tooling technician with the machine powered down and spindle locked. Follow the machine tool manufacturer torque specifications for draw bar engagement when seating the CAT40 taper. Inspect collet, bore, and taper surfaces for chips or debris before assembly, as contamination directly affects TIR. Through-coolant fittings should be confirmed leak-free before returning the spindle to service.
