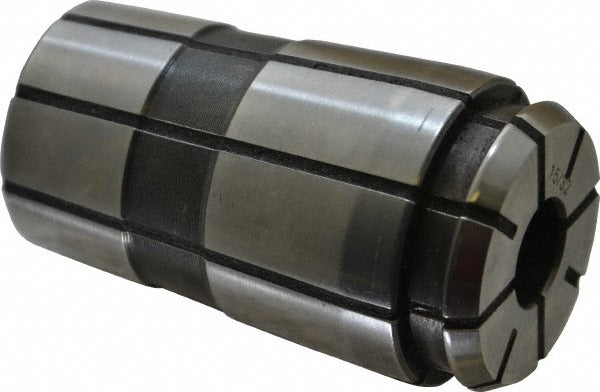

Parlec 100RPG-0468 Coolant Single Angle Collet Tg/pg 100

Product Description

The PARLEC 100RPG-0468 is a coolant single angle collet designed for use with TG/PG 100 series toolholding systems. It accepts a 0.4688 inch (15/32 inch) bore, features a maximum body diameter of 1.379 inches, and delivers a Total Indicator Runout (TIR) of 0.0005 inches for precision workholding. The overall length is 2.375 inches. Rated for coolant pressure up to 600 psi, this collet supports through-coolant delivery directly to the cutting zone. It is installed by CNC machinists and toolroom technicians working with TG/PG 100 collet chucks in precision machining environments.

This collet is intended for use in TG/PG 100 series collet chucks commonly found on CNC machining centers, lathes, and manual milling machines where through-coolant capability and tight runout tolerances are required. Typical applications include high-speed finishing operations and precision drilling where coolant delivery at the cutting edge improves tool life and chip evacuation. No specific compatible model numbers were provided in the product data.

Key Features

• 0.4688 inch (15/32 inch) bore size for precise tool clamping
• TIR of 0.0005 inches supports tight-tolerance machining operations
• Through-coolant design rated to 600 psi for direct cutting zone delivery
• Maximum body diameter of 1.379 inches fits TG/PG 100 chuck specifications
• Overall length of 2.375 inches for standard reach applications
• Single angle collet geometry provides consistent clamping force and concentricity

Compatibility

Designed as an OEM-style replacement or direct-fit collet for TG/PG 100 series collet chuck systems requiring through-coolant capability.

Installation Notes

Installation is performed by qualified CNC toolroom technicians or machinists. Always power down and lock out the machine spindle before removing or installing collets. Ensure the collet chuck bore and collet exterior are clean and free of chips or coolant deposits before seating the collet. Verify coolant line connections and pressure ratings are within the system specification before resuming operation.
