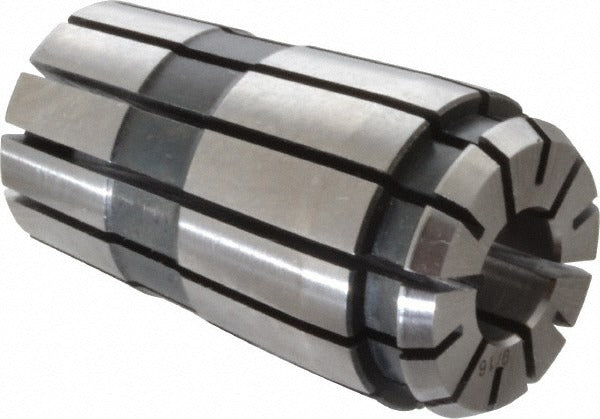

Parlec 100PG-0562 TG100 PG100 Standard Collet 9/16

Product Description

The PARLEC 100PG-0562 is a standard single angle collet designed for TG100 and PG100 collet chuck systems. It accepts a 0.5625 inch (9/16 inch) tool shank and delivers a total indicator runout (TIR) of 0.0005 inches, providing the precision required for milling, drilling, and reaming operations on machining centers. The body diameter measures 1.379 inches with an overall length of 2.375 inches. It weighs 1 pound. This collet is installed by machinists and toolroom technicians wherever close-tolerance workholding is critical.

This collet is suited for use in vertical and horizontal machining centers equipped with TG100 or PG100 collet chuck holders. The TG100 and PG100 series are widely used in production and job-shop environments where consistent, repeatable tool grip is required across a range of cutting tool diameters. This collet covers the 9/16 inch shank size within that system.

Key Features

• TG100 and PG100 compatible single angle collet design
• 0.5625 inch (9/16 inch) collet bore for standard cutting tool shanks
• 0.0005 inch TIR for close-tolerance tool holding
• 1.379 inch maximum body diameter
• 2.375 inch overall length

Compatibility

Designed for use with TG100 and PG100 collet chuck holders. Compatible with cutting tools having a 0.5625 inch shank diameter.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the machining center spindle before changing collets. Ensure the collet bore, shank, and chuck body are clean and free of chips or debris before seating the collet. Do not exceed the torque specifications listed by the chuck manufacturer for the nut.
