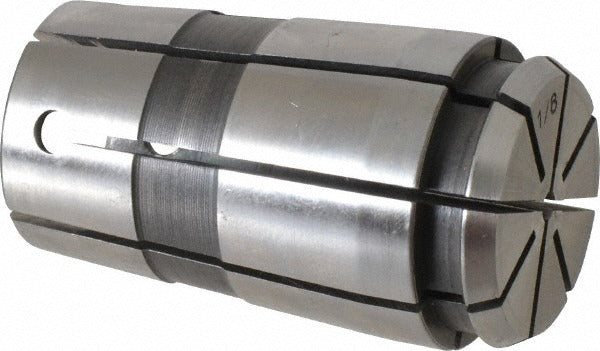

Parlec 100PG-0125 TG100 PG100 Single Angle Collet

Product Description

The PARLEC 100PG-0125 is a standard single angle collet designed for use in TG100 and PG100 collet chuck systems. It accepts a 0.125 inch (1/8 inch) tool shank and holds a total indicated runout (TIR) of 0.0005 inches, making it suitable for precision machining operations where concentricity matters. The collet measures 2.375 inches in overall length with a body diameter of 1.379 inches. It is installed by machinists and toolroom technicians in CNC machining centers, mills, and drilling equipment configured with TG100 or PG100 toolholding systems.

This collet is suited for production and job-shop environments requiring reliable, repeatable tool holding in TG100 or PG100 format chuck assemblies. Typical applications include drilling, reaming, and light milling operations where 1/8 inch shank cutting tools are used. The standard single angle design follows established TG/PG collet geometry for consistent clamping force and concentricity across the collet range.

Key Features

• Accepts 0.125 inch (1/8 inch) tool shank diameter
• TIR of 0.0005 inches for precision tool holding
• Compatible with TG100 and PG100 collet chuck systems
• Overall length of 2.375 inches
• Body diameter of 1.379 inches
• Standard single angle collet geometry for consistent clamping performance

Compatibility

Designed for use with TG100 and PG100 collet chuck systems as indicated by the TG100 and PG100 collet series designation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the spindle and chuck assembly are fully powered down and at rest before inserting or removing collets. Clean the collet bore and chuck taper before seating the collet to avoid contamination that can affect runout. Do not exceed the collet's rated shank capacity, as oversize tooling can damage the collet and chuck body.
