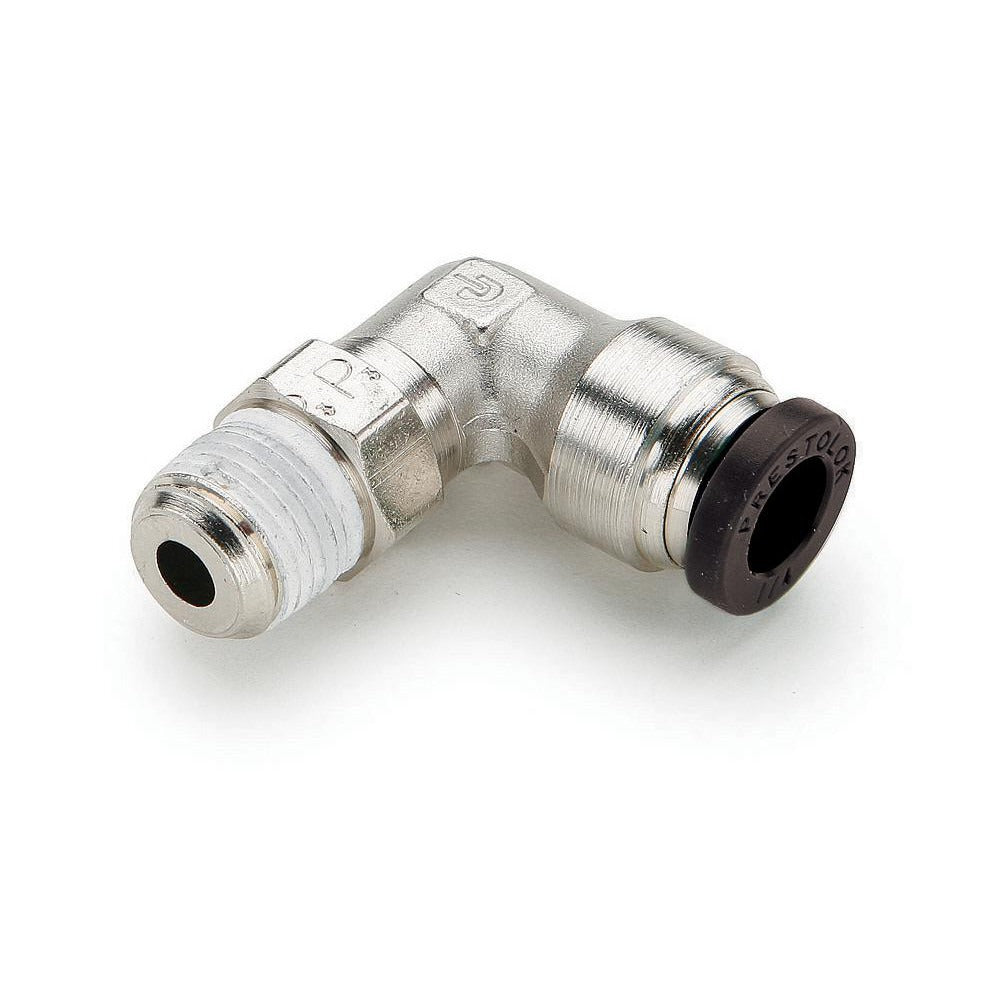

Parker XW169PLP-3-2 90 Male Elbow Fitting 3/16in Od

Product Description

The PARKER XW169PLP-3-2 is a push-to-connect 90-degree male elbow tube fitting designed for fast, tool-free tube connections in pneumatic and fluid-transfer applications. It accepts 3/16-inch OD tubing on both tube ports and terminates with a 1/8-inch NPTF male thread. The body is nickel-plated brass, and the actuator button is made from black flame-resistant material rated to UL94 V-0. Rated for a maximum working pressure of 300 psi and a temperature range of 0 to 200 degrees F, this fitting is suited for demanding service environments. Licensed HVAC technicians, plumbers, and industrial piping contractors are the typical installers.

This fitting is used in residential and light commercial HVAC systems, pneumatic control lines, refrigeration ancillary tubing, and fluid-transfer assemblies where a 90-degree directional change is required. The push-to-connect design speeds up installation in tight spaces and avoids the need for compression sleeves or ferrules. The NPTF thread provides a pressure-tight seal at the male pipe connection without relying solely on thread sealant. Wherever a compact elbow connection between small-diameter tubing and a male NPT port is needed, this fitting provides a reliable solution.

Key Features

• Push-to-connect design accepts 3/16-inch OD tubing with no tools required for tube insertion
• 90-degree elbow geometry for directional routing in confined spaces
• 1/8-inch NPTF male thread for pressure-tight pipe connections
• Nickel-plated brass body for corrosion resistance and durability
• Nitrile O-ring seal compatible with a wide range of pneumatic and hydraulic media
• Flame-resistant UL94 V-0 rated actuator button for use in heat-proximate environments

Compatibility

Designed as an OEM-style replacement or new-installation fitting for pneumatic control, HVAC, and fluid-transfer systems using 3/16-inch OD tubing with 1/8-inch NPTF male pipe thread connections.

Installation Notes

Shut off all system pressure and bleed the line before removing or installing push-to-connect fittings. Ensure tubing is cut cleanly and squarely and is free of burrs before insertion to maintain a reliable seal. Apply thread sealant or PTFE tape to the NPTF male threads per the applicable plumbing or pneumatic system code. To release tubing, depress the collet button fully and pull the tube straight out.
