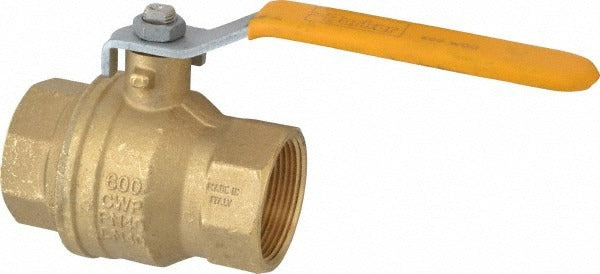

Parker XV520P-24 Ball Valve 1-1/2 in Fnpt 650 Psi Brass

Product Description

The PARKER XV520P-24 is a 2-piece standard ball valve designed for manual flow control in plumbing, HVAC, and industrial piping systems. Built with a brass body and brass trim, it accepts 1-1/2 inch female NPT connections on both ends and operates via a lever handle for quick quarter-turn shutoff. Rated to 650 psi maximum working pressure, this valve delivers reliable isolation performance in a compact, serviceable two-piece design. The seat and seals are reinforced PTFE, providing chemical resistance and long service life across a wide range of media. Licensed plumbers and pipefitters are the typical installers for this fitting class.

The XV520P-24 is suited for residential and light commercial plumbing installations, hydronic heating systems, chilled water lines, and general-purpose piping where a durable brass full-port ball valve is required. The FNPT x FNPT end connections make it compatible with standard threaded pipe systems. The lever handle allows for fast manual operation and immediate visual confirmation of valve position, which is valuable in mechanical rooms and equipment closets where service access may be limited.

Key Features

• 2-piece brass body construction for durability and ease of service
• 1-1/2 inch FNPT x FNPT end connections for standard threaded pipe systems
• 650 psi maximum working pressure rating
• Reinforced PTFE seat and seal material for chemical resistance
• Lever handle provides quarter-turn operation with clear open/closed indication
• Compliant with California Proposition 65 standards

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 1-1/2 inch threaded pipe systems using female NPT connections in plumbing and hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IPC requirements. Shut off system pressure and drain the line completely before removing or installing any valve. Apply thread sealant or PTFE tape to male NPT threads on the mating pipe — do not apply sealant inside the valve body ports. Verify flow direction and handle clearance before final tightening.
