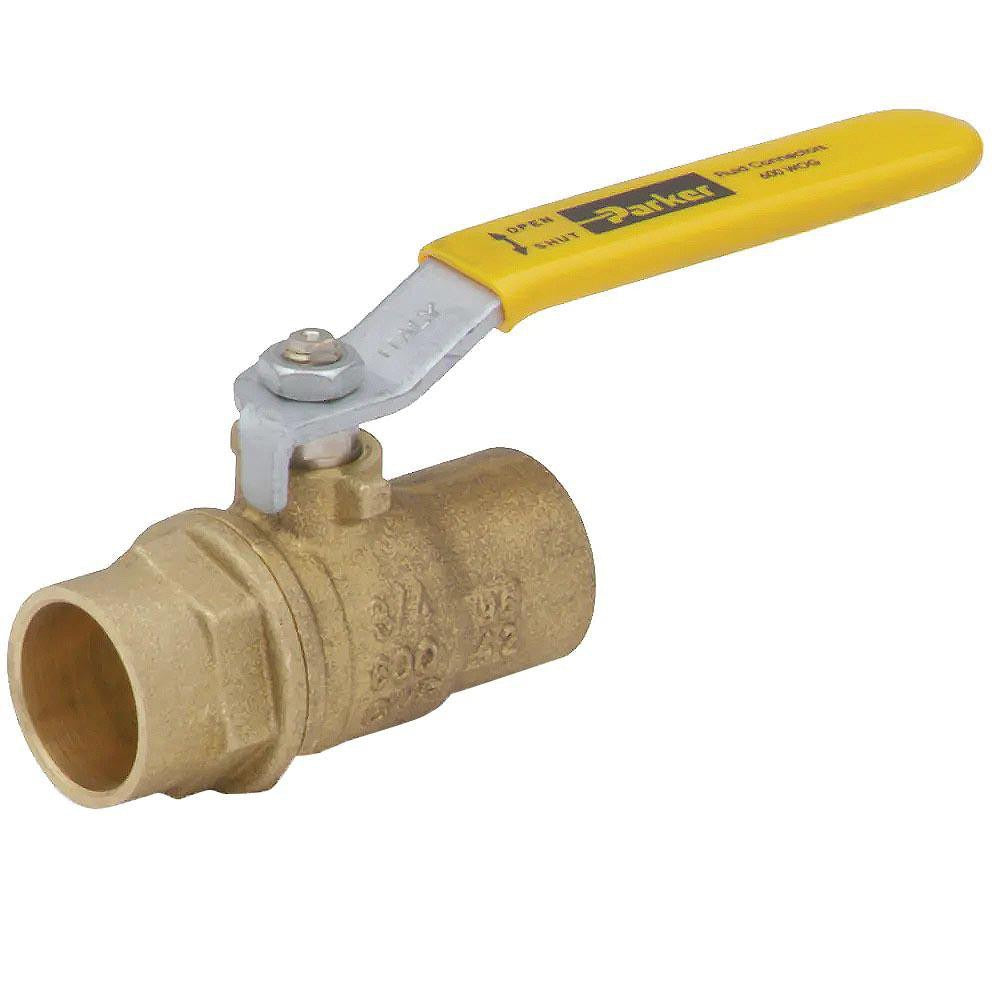

Parker XV509P-8 Ball Valve 1/2 Inch Soldered Brass 600 Psi

Product Description

The PARKER XV509P-8 is a 2-piece standard manual ball valve rated for up to 600 psi working pressure, designed for use in plumbing and hydronic systems where a reliable shutoff is required. The body and trim are brass, making it well suited for copper tubing installations with solder end connections on both ports. The lever handle is steel and provides a positive quarter-turn open/close action. Seating and seal material is reinforced polytetrafluoroethylene (PTFE), which offers chemical resistance and long service life. Licensed plumbers and HVAC technicians are the primary installers of this valve type in both new construction and service work.

This valve is used in residential and light commercial applications where 1/2 inch copper pipe is the distribution medium. Typical install scenarios include domestic water supply shutoffs, hydronic heating branch lines, and refrigeration or chilled water secondary loop isolation. The soldered x soldered end connections require a standard sweat joint process using copper fittings and appropriate flux and solder per local code requirements. It is not rated for use with threaded or press-fit systems without adaptation.

Key Features

• 600 psi maximum working pressure for robust service in pressurized systems
• Brass body and trim for corrosion resistance in water and hydronic fluid service
• Reinforced PTFE seat and seals for long-term leak-free performance
• 2-piece body construction allows for easier servicing and in-line installation
• Steel lever handle for positive quarter-turn shutoff operation
• Soldered x soldered end connections sized for 1/2 inch copper pipe

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 1/2 inch copper pipe systems using sweat (soldered) end connections in plumbing and hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and depressurize the water or fluid system completely before cutting into the line or beginning sweat work. Allow soldered joints to cool fully before pressurizing the system to avoid seal distortion. Do not exceed the rated working pressure of 600 psi during system testing or operation.
