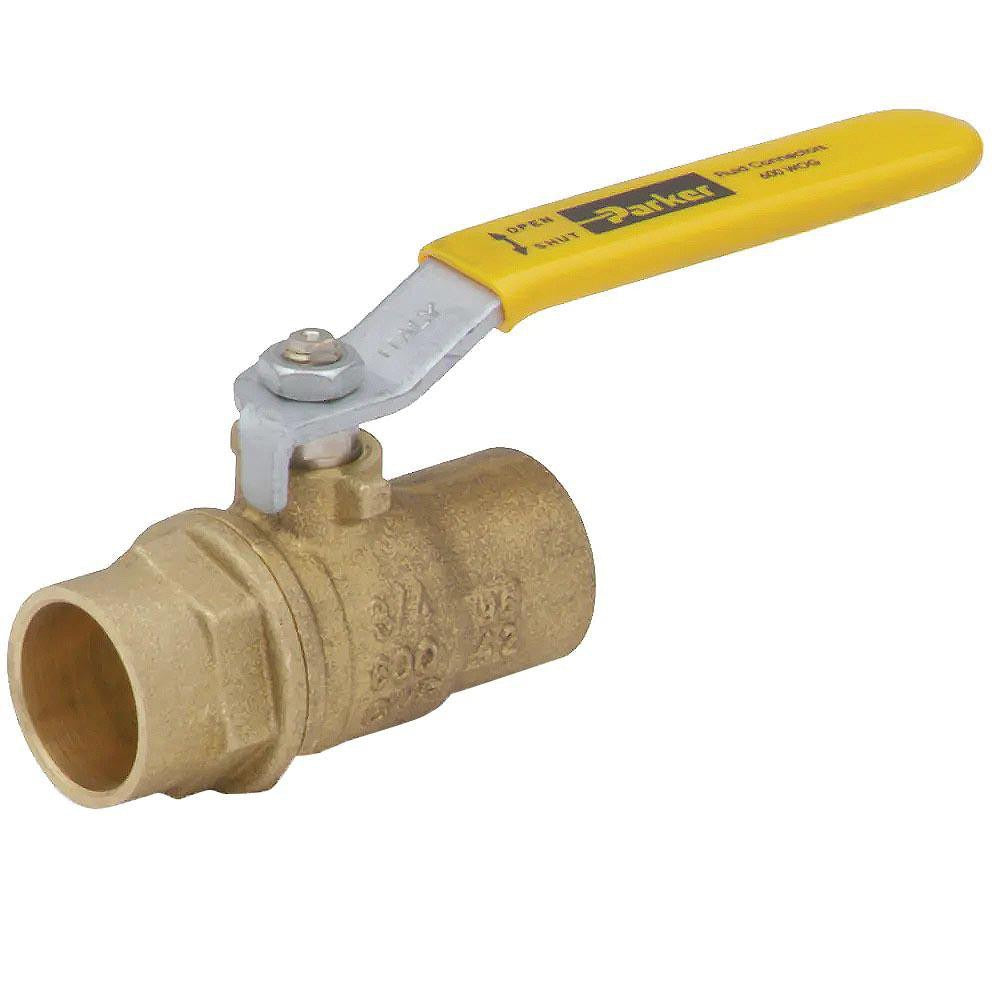

Parker XV509P-16 Brass Ball Valve 1 Inch 600 Psi

Product Description

The PARKER XV509P-16 is a 2-piece standard manual ball valve designed for plumbing and mechanical piping systems requiring reliable on/off flow control. Built with a brass body and brass trim, this valve connects via soldered x soldered end connections in a 1-inch pipe size. The lever handle provides quick quarter-turn operation. A reinforced polytetrafluoroethylene (PTFE) seat and seal deliver chemical resistance and long service life. Maximum working pressure is 600 psi, making this valve suitable for a wide range of commercial and residential hydronic, water, and compatible fluid service applications.

This valve is installed in copper pipe systems using sweat solder connections on both the inlet and outlet ends. It is well suited for residential and light commercial plumbing, hydronic heating and cooling distribution lines, and mechanical room piping where a compact, full-port shutoff is required. Licensed plumbers and pipefitters typically install this valve in new construction and retrofit applications where a durable brass shutoff is specified at 1-inch pipe sizes.

Key Features

• 2-piece brass body construction with brass trim for corrosion resistance in water and fluid service
• Soldered x soldered end connections for standard copper pipe sweat installation
• Reinforced PTFE seat and seal material for chemical resistance and low-torque operation
• Steel lever handle enables fast quarter-turn open and close actuation
• 600 psi maximum working pressure rated for demanding plumbing and hydronic applications
• 1-inch pipe size in a compact 2-piece valve body

Compatibility

Designed as an OEM-style replacement or new-installation manual ball valve for 1-inch copper pipe systems using soldered end connections in residential and commercial plumbing and hydronic piping.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IAPMO or IPC standards. Shut off and depressurize the supply line and allow all pipe surfaces to cool completely before soldering the valve into the line. Apply flux and solder only to the pipe and fitting socket surfaces, and avoid overheating the valve body to protect the internal PTFE seats. Confirm the lever handle orientation indicates the correct open and closed position before returning the system to service.
