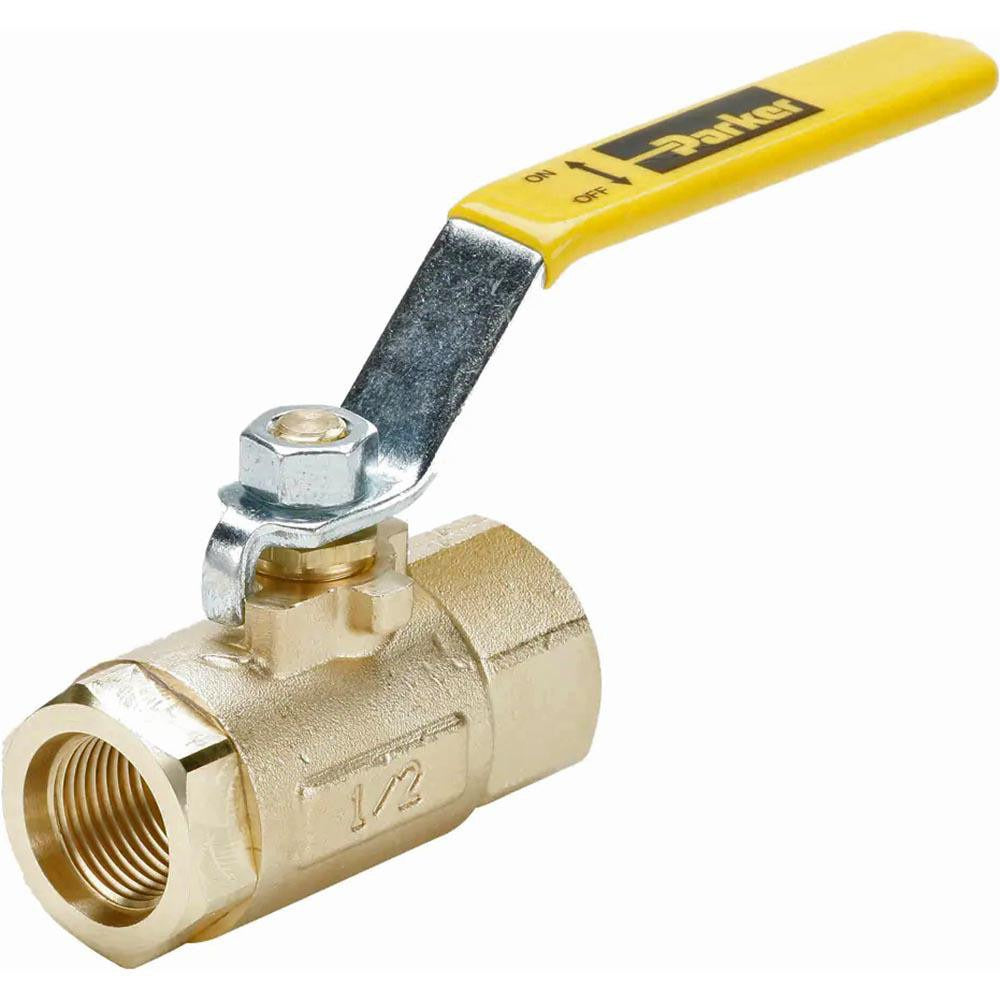

Parker XV506P-8 Ball Valve 1/2 Inch Sae 600 Psi Brass

Product Description

The PARKER XV506P-8 is a standard manual ball valve designed for 1/2-inch pipe applications with SAE x SAE end connections. Built with a brass body, brass trim, and a brass lever handle, it delivers reliable shutoff performance in hydraulic and fluid system lines. The valve is rated for a maximum working pressure of 600 psi and uses reinforced polytetrafluoroethylene (PTFE) seat and seal materials for low-friction operation and chemical resistance. At 0.641 pounds, it is a compact, direct-replacement component suited for installation by licensed plumbers, HVAC technicians, and hydraulic system technicians.

This ball valve is applicable in residential and light commercial fluid systems where a 1/2-inch SAE-ported shutoff is required. The SAE x SAE thread configuration makes it compatible with standard hydraulic fittings and refrigerant line assemblies. The lever handle provides a clear open/closed visual indicator and allows quarter-turn operation without additional tools. Thread size is 3/4-16, confirming fitment with standard SAE straight-thread port connections used across hydraulic manifolds and HVAC service valves.

Key Features

• Brass body and trim construction for corrosion resistance in fluid and hydraulic service
• Reinforced PTFE seats and seals for low-friction, chemically resistant shutoff
• 600 psi maximum working pressure rating
• SAE x SAE end connections with 3/4-16 thread size
• Quarter-turn lever handle with clear open/closed visual indication
• Compact design at 0.641 pounds for tight-space installations

Compatibility

Designed as an OEM-style replacement or service valve for 1/2-inch SAE-ported hydraulic and fluid systems requiring a standard two-piece brass ball valve with reinforced PTFE seating.

Installation Notes

Installation should be performed by a licensed plumber or qualified hydraulic technician. Depressurize and drain the system completely before removing or installing any valve. Ensure thread engagement meets standard SAE straight-thread torque practices and use appropriate thread sealant compatible with system fluid. Verify the valve handle orientation matches system flow direction before returning the system to service.
