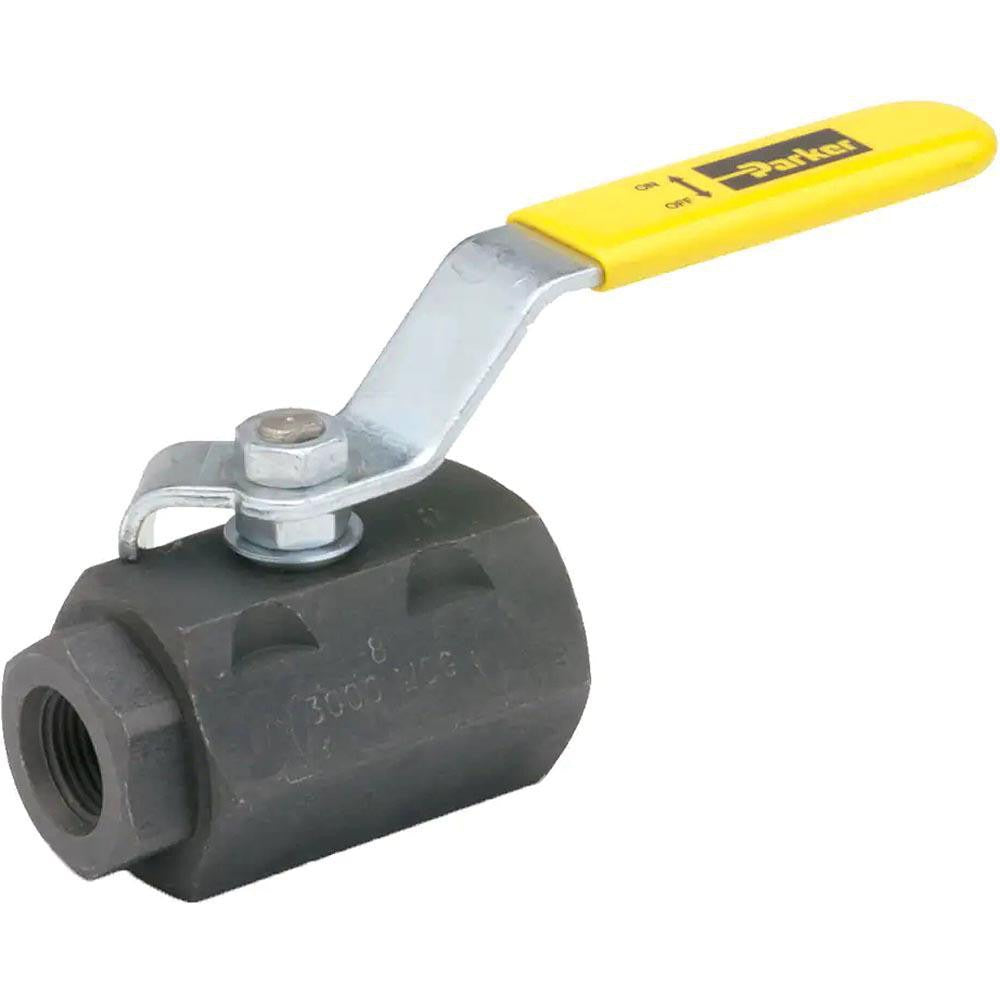

Parker XV506CS-6 Ball Valve 3/8 Inch Sae 3000 Psi

Product Description

The PARKER XV506CS-6 is a standard manual ball valve designed for 3/8 inch pipe connections in hydraulic and fluid power systems. Built with a carbon steel body and trim, this two-piece lever-handle valve provides reliable on/off flow control in demanding service environments. It is rated to 3000 psi maximum working pressure and uses reinforced polytetrafluoroethylene (PTFE) seat and seal materials for resistance to a wide range of fluids. Typical installers include hydraulic system technicians, millwrights, and fluid power specialists working on mobile or industrial equipment.

This valve is suited for hydraulic line service where SAE straight-thread port connections are required. The SAE x SAE end connection conforms to SAE J1926-1, making it a direct fit for standard SAE O-ring face seal and straight-thread port applications. It is commonly installed in hydraulic circuits on industrial machinery, mobile equipment, and related fluid power systems where a compact, high-pressure manual shutoff is needed. The lever handle allows for quick quarter-turn operation to open or close flow.

Key Features

• 3000 psi maximum working pressure rating for high-pressure hydraulic service
• Carbon steel body and trim for durability in industrial environments
• Reinforced PTFE seat and seal materials for broad fluid compatibility
• SAE x SAE end connections conforming to SAE J1926-1
• Lever handle provides fast quarter-turn open/close operation
• Two-piece body construction for straightforward installation and maintenance

Compatibility

Designed for use in hydraulic and fluid power systems with 3/8 inch SAE straight-thread port connections meeting SAE J1926-1. Suitable for applications requiring a manual shutoff valve rated to 3000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing any existing valve or fitting. Use appropriate thread sealant or O-ring for SAE connections as required by the application. Follow all applicable system manufacturer guidelines and safety procedures when working with high-pressure hydraulic lines.
