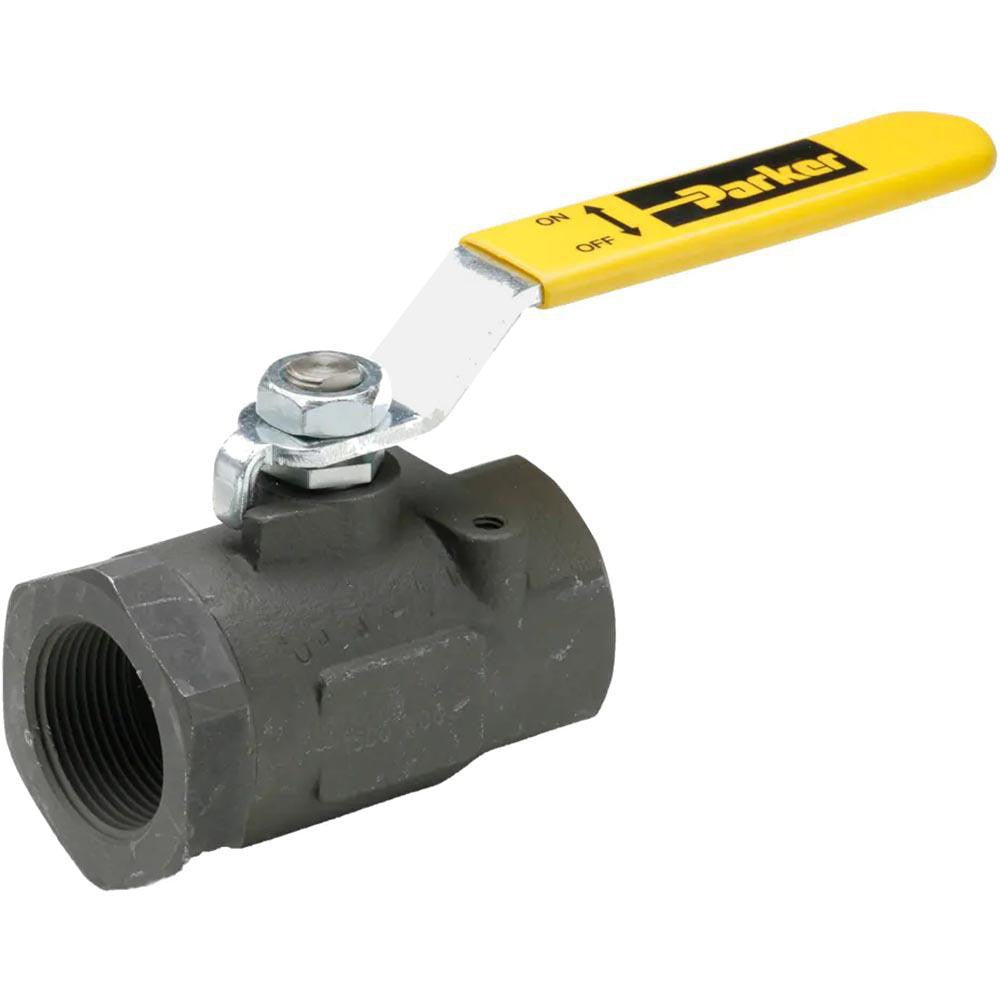

Parker XV502CS-20 Ball Valve 1-1/4 in Fnpt Carbon Steel

Product Description

The PARKER XV502CS-20 is a 2-piece standard manual ball valve designed for industrial fluid control applications. It features a 1-1/4 inch FNPT x FNPT end connection and a carbon steel body with a lever handle for quick quarter-turn shutoff. The seat and seal are constructed from reinforced polytetrafluoroethylene (RPTFE), which provides reliable chemical resistance and low-friction operation. Rated to a maximum working pressure of 103 bar (approximately 1,494 psi), this valve is built for demanding service environments. It weighs 3.115 pounds. Licensed plumbers, pipefitters, and industrial maintenance technicians are the primary installers of this valve type.

This ball valve is suited for use in residential and commercial plumbing, HVAC hydronic systems, industrial process piping, and general fluid handling lines where a reliable manual shutoff is required. The FNPT x FNPT connection makes it compatible with standard threaded pipe installations. The lever handle allows for rapid open and close operation, which is practical in service and maintenance scenarios. The minimum working temperature rating of -10 degrees F makes it appropriate for cold-weather piping applications as well as interior mechanical rooms.

Key Features

• 2-piece carbon steel body for strength and durability in pressurized systems
• FNPT x FNPT end connections for standard threaded pipe installation
• Reinforced PTFE seat and seal for chemical resistance and low-friction sealing
• Lever handle allows quick quarter-turn manual operation
• Maximum working pressure of 103 bar for high-pressure service
• Meets SAE J1926-1 standards

Compatibility

Designed as an OEM-style replacement or new-installation manual ball valve for 1-1/4 inch threaded pipe systems in commercial and industrial piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter following applicable local plumbing codes and IFGC or IPC requirements as relevant to the service fluid. Depressurize and drain the line completely before removing any existing valve or making new connections. Apply appropriate thread sealant to FNPT connections per the sealant manufacturer and local code requirements. Do not exceed the rated maximum working pressure or operate outside the specified temperature range.
