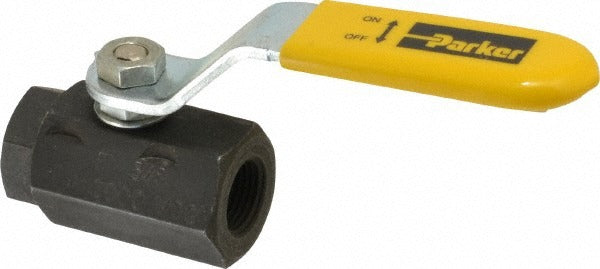

Parker XV500CS-6 Ball Valve 3/8 Inch Fnpt 2000 Psi

Product Description

The PARKER XV500CS-6 is a standard manual ball valve designed for inline shutoff and flow control in fluid and gas systems. Built with a 2-piece carbon steel body and lever handle, this valve delivers a rated maximum working pressure of 2000 psi, making it suitable for demanding industrial and mechanical service applications. The reinforced polytetrafluoroethylene (PTFE) seat and seal materials provide reliable sealing performance across a wide range of media. FNPT x FNPT end connections on both ports allow straightforward threaded installation into existing piping. Licensed plumbers, HVAC technicians, and mechanical contractors are the typical installers for this type of valve.

This ball valve is sized for 3/8 inch pipe and is well suited to compressed air lines, hydraulic systems, refrigerant or water circuits, and other pressurized fluid systems where a full-bore shutoff is required. The 2-piece body construction simplifies in-line maintenance and seat replacement when needed. Its lever handle allows quick quarter-turn operation for fast manual open and close cycling. This valve is appropriate for both commercial and light industrial installations where high-pressure shutoff capability is a priority.

Key Features

• 2-piece carbon steel body rated to 2000 psi maximum working pressure
• Reinforced PTFE seat and seal for chemical resistance and long service life
• FNPT x FNPT end connections for standard threaded pipe installation
• Lever handle allows quarter-turn manual operation
• 3/8 inch pipe size fits common small-bore service lines
• California Proposition 65 compliant per stated standards

Compatibility

Designed as a standard OEM-style replacement or new-installation manual ball valve for 3/8 inch threaded pipe systems requiring FNPT x FNPT connections and a 2000 psi pressure rating.

Installation Notes

This valve is typically installed by licensed plumbers or mechanical contractors working on pressurized piping systems. Depressurize and drain the line completely before removing or installing any threaded valve. Apply thread sealant or tape appropriate to the service media on the male NPT threads before assembly. Verify that the installed valve orientation and handle travel clearance are suitable for the application before returning the system to service.
