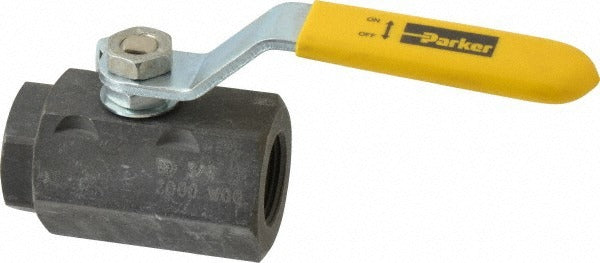

Parker XV500CS-12 Ball Valve 3/4 Inch Fnpt 2000 Psi

Product Description

The PARKER XV500CS-12 is a standard manual ball valve designed for inline shutoff and flow control in industrial and commercial piping systems. Built with a carbon steel body and trim, this 2-piece valve handles working pressures up to 2000 psi and operates across a temperature range starting at -20 degrees F. The 3/4 inch female NPT (FNPT) connections on both ends allow straightforward threaded installation into existing pipe runs. The lever handle provides quick quarter-turn actuation for fast open and close operation. Seats and seals are reinforced PTFE (polytetrafluoroethylene), offering chemical resistance and long service life under demanding conditions. Licensed plumbers, pipefitters, and industrial mechanics are the typical installers for this valve type.

This valve is suited for residential and commercial plumbing, HVAC hydronic systems, compressed air lines, and general fluid handling applications where a reliable shutoff is required. The FNPT x FNPT end configuration makes it compatible with standard threaded pipe fittings in 3/4 inch sizes. The carbon steel construction is appropriate for use with water, air, oil, and a range of compatible industrial fluids. California Proposition 65 compliance is noted for this product.

Key Features

• Carbon steel body and trim rated to 2000 psi maximum working pressure
• 3/4 inch FNPT x FNPT end connections for standard threaded pipe installation
• Reinforced PTFE seats and seals for chemical resistance and low-friction operation
• Lever handle for quick quarter-turn open and close actuation
• 2-piece valve body design for straightforward field service
• Rated for minimum working temperature of -20 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 3/4 inch threaded pipe systems using FNPT connections in industrial, commercial, or residential applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and ASME B31 piping standards. Shut off and depressurize the system completely before removing any existing valve or making new connections. Apply appropriate thread sealant or PTFE tape to all NPT threads prior to assembly. Do not exceed the rated working pressure of 2000 psi for this valve.
