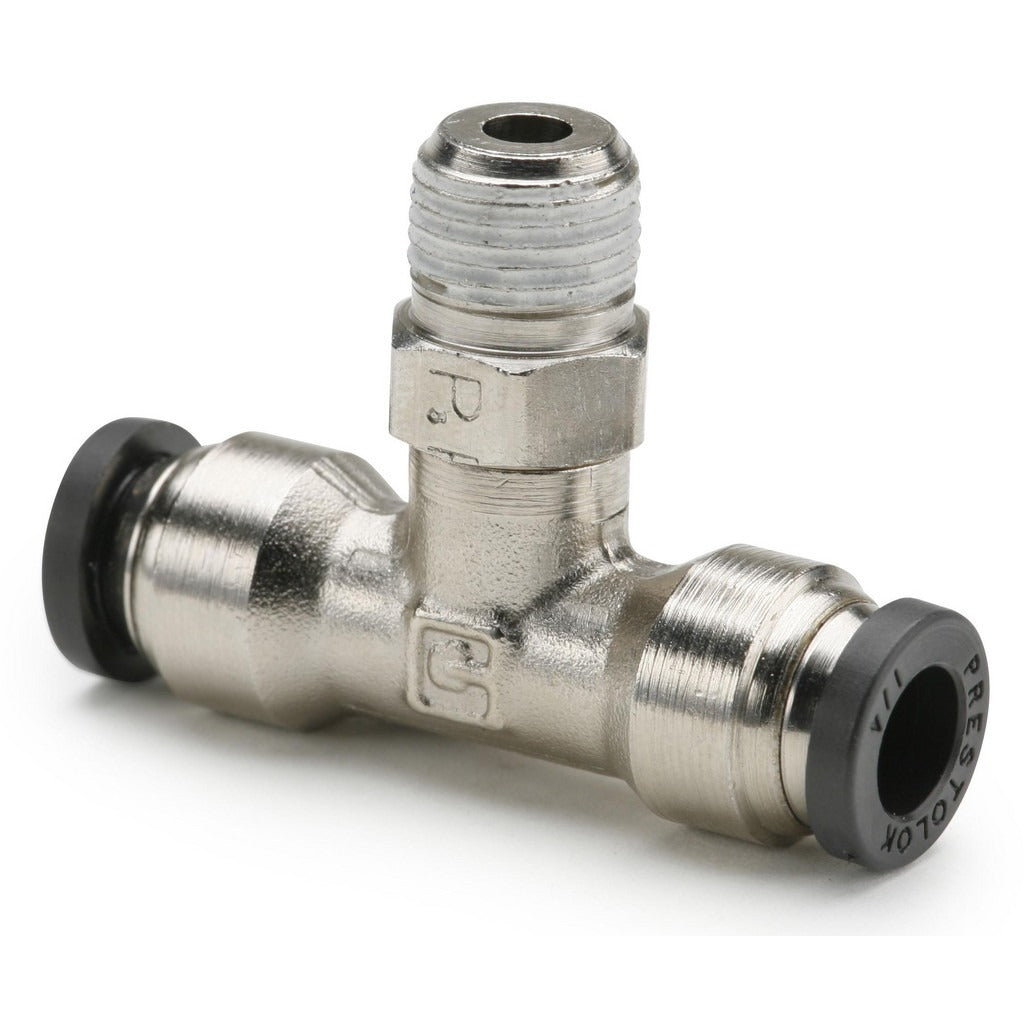

Parker W172PLP-8-8 Male Branch Tee 1/2 in Od 300 Psi

Product Description

The PARKER W172PLP-8-8 is a push-to-connect male branch tee tube fitting designed for pneumatic and fluid systems requiring a reliable, tool-free tube connection with a male NPT branch outlet. Constructed from nickel-plated brass, this fitting handles a maximum working pressure of 300 psi and an operating temperature range of 0 to 200 degrees F. The connection configuration is Tube x MNPT x Tube x Male, allowing two inline tube connections and one male-threaded branch port in a single body. Licensed HVAC, plumbing, and mechanical service technicians install this type of fitting in compressed air lines, pneumatic control circuits, and fluid distribution systems.

This fitting is suited for both residential and light commercial applications where push-to-connect speed and positive sealing at the NPTF thread are required. The 1/2 inch OD tube connections accept standard 1/2 inch outside-diameter tubing, and the 1/2 inch NPTF threaded port provides a dry-seal mechanical thread interface. The overall installed length is 2.3 inches, making it compatible with space-constrained panel or equipment installations. The black push-button collet is made from flame-resistant material rated to UL94 V-0, adding a margin of safety in equipment enclosures.

Key Features

• Push-to-connect tube ends accept 1/2 inch OD tubing without tools or ferrules
• 1/2 inch NPTF dry-seal thread on the male branch port
• Nickel-plated brass body for corrosion resistance in wet or humid environments
• Rated to 300 psi maximum working pressure
• Operating range of 0 to 200 degrees F with nitrile O-ring seals
• UL94 V-0 flame-resistant black collet button

Compatibility

Designed as an OEM-style push-to-connect branch tee replacement for pneumatic and fluid distribution systems using 1/2 inch OD tubing and 1/2 inch NPTF male-threaded branch connections.

Installation Notes

Installation should be performed by a qualified mechanical, HVAC, or plumbing technician. Before servicing any pneumatic or pressurized fluid line, depressurize the system fully and verify zero pressure with an appropriate gauge. Tubing must be cut cleanly and squarely, deburred, and inserted to full depth in the push-to-connect collet to achieve a proper seal. Verify NPTF thread engagement meets applicable mechanical code requirements before returning the system to service.
