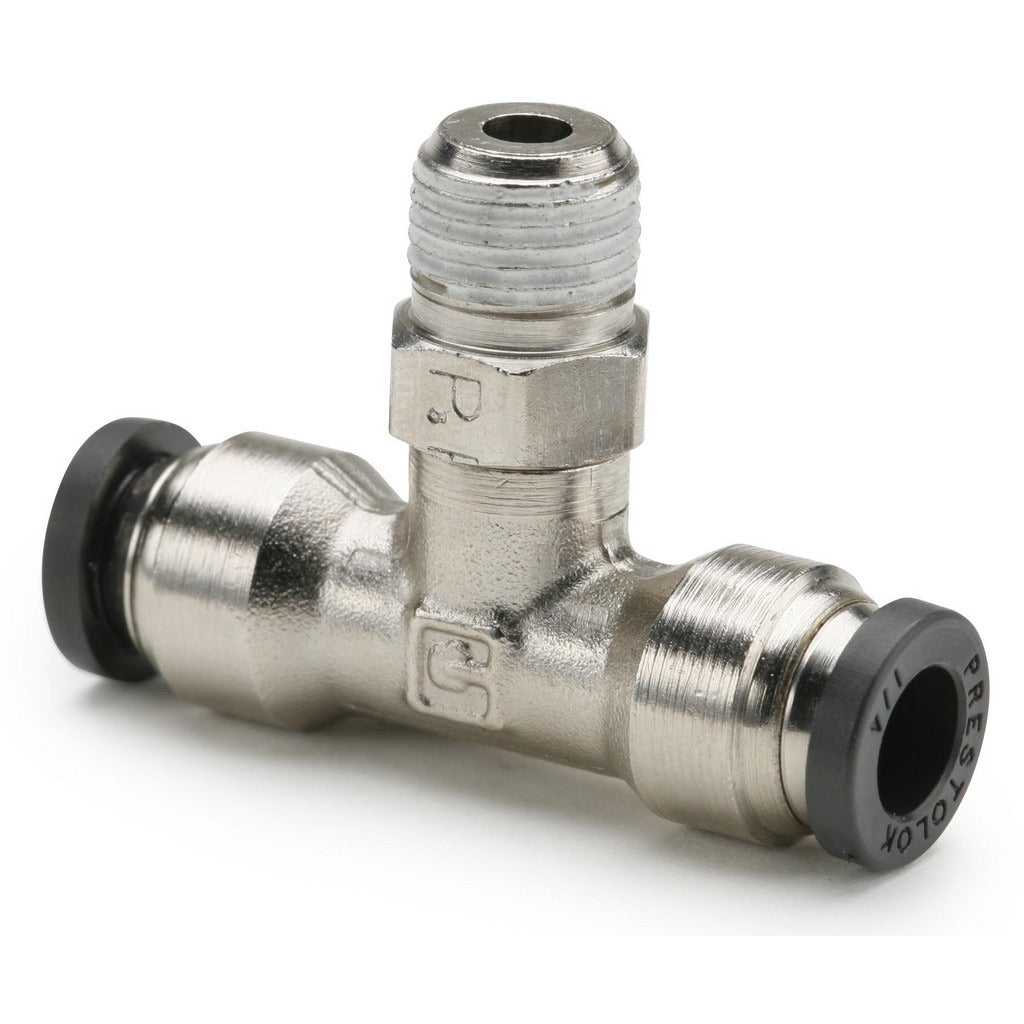

Parker W172PLP-8-4 Male Branch Tee 1/2 in Od 1/4 in Nptf

Product Description

The PARKER W172PLP-8-4 is a push-to-connect male branch tee tube fitting constructed of nickel-plated brass. It connects two tube runs and one male threaded port in a single body, providing a compact branch point in pneumatic or fluid distribution lines. The fitting accepts 1/2 inch OD tubing on the tube ports and uses a 1/4 inch NPTF male thread on the branch port. Maximum working pressure is 300 psi. The release button is made from black, flame-resistant material rated to the UL 94 V-0 standard. Nitrile O-rings provide the internal tube seal. Licensed plumbers, HVAC technicians, and fluid-system installers work with this fitting on light to medium-duty lines.

This fitting is suited for pneumatic control tubing, compressed air distribution, and fluid transfer applications in residential and light commercial settings. The push-to-connect design allows fast, tool-free tube insertion and secure retention without ferrules or compression nuts. The NPTF thread provides a dry-seal connection on the branch port, reducing the need for additional thread sealant in many installations. It is typically found in HVAC control circuits, pneumatic actuator supply lines, and general plumbing branch configurations where a compact inline tee is needed.

Key Features

• Push-to-connect tube ports accept 1/2 inch OD tubing without ferrules or tools
• 1/4 inch NPTF male branch port provides a dry-seal threaded connection
• Nickel-plated brass body for corrosion resistance in wet or humid environments
• Rated to 300 psi maximum working pressure
• Operating temperature range of 0 degrees F to 200 degrees F
• UL 94 V-0 rated flame-resistant release button material
• Nitrile O-rings for reliable internal tube sealing

Compatibility

Designed as an OEM-style push-to-connect branch tee for pneumatic and fluid lines using 1/2 inch OD tubing with a 1/4 inch NPTF male branch port in residential and light commercial systems.

Installation Notes

Power down or depressurize the system completely before disconnecting or installing any push-to-connect fitting. Verify that tubing OD and wall thickness are within the fitting manufacturer's specifications before insertion. Inspect tubing cut ends for squareness and burrs, as irregular ends can compromise the O-ring seal. To release tubing, depress the collet button fully while pulling the tube straight out; do not torque or angle the tube during removal.
