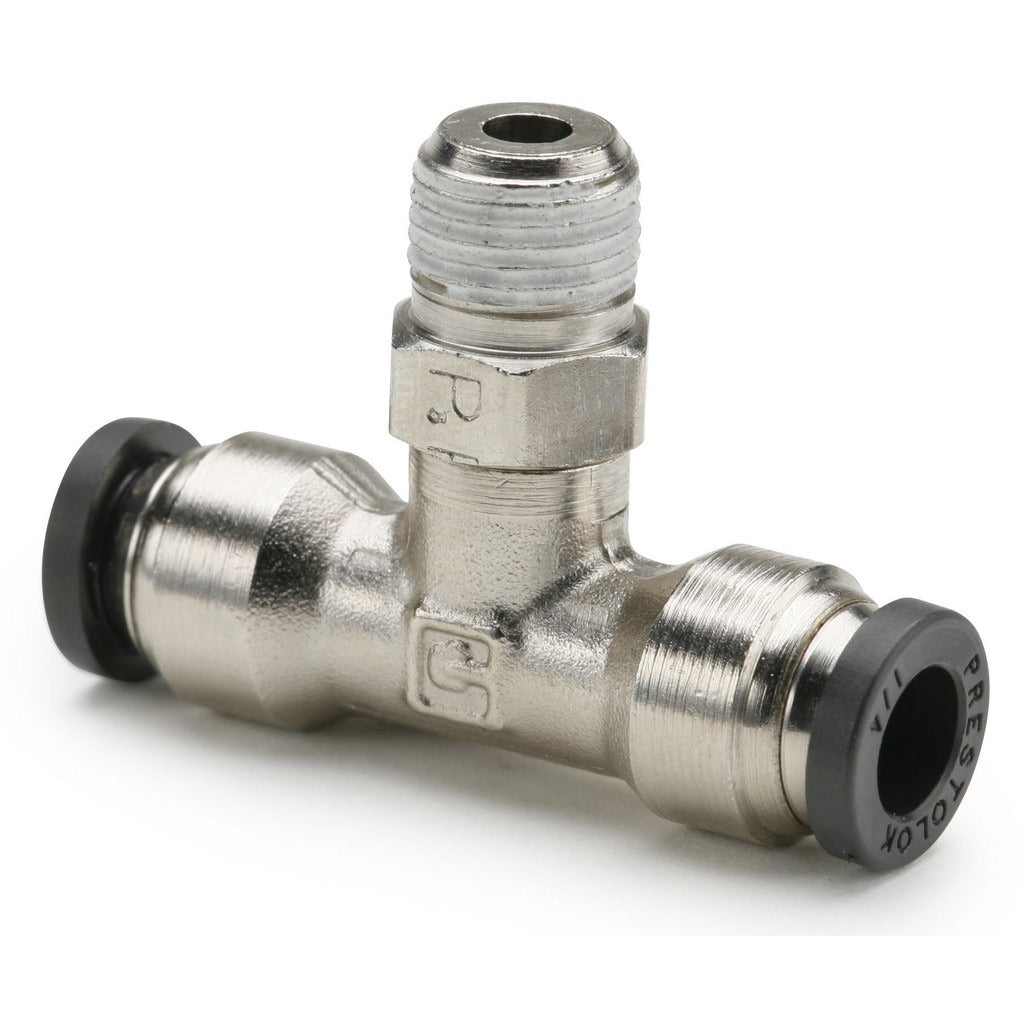

Parker W172PLP-5-2 Male Branch Tee Push-to-connect 5/16 Od

Product Description

The PARKER W172PLP-5-2 is a push-to-connect male branch tee tube fitting constructed from nickel-plated brass. It accepts 5/16 inch OD tubing on the tube ports and connects to a 1/8 inch NPTF male thread on the branch port, creating a three-way split in a pneumatic or fluid line without the need for ferrules or compression tools. The fitting is rated to 300 psi maximum working pressure and handles temperatures from 0 degrees F to 200 degrees F. The internal O-ring is nitrile, and the push-to-connect button is a black flame-resistant material rated to UL94 V-0. HVAC technicians, plumbers, and pneumatic system installers use this fitting where a quick, reliable tube branch connection is required.

This fitting is suited for use in low-pressure pneumatic control lines, instrumentation tubing, and fluid distribution systems found in both residential and light commercial applications. The push-to-connect design speeds up installation in tight spaces where wrench access is limited. The NPTF thread ensures a pressure-tight mechanical seal on the male branch port without the need for additional sealant tape in most applications, though jobsite practice and applicable codes should guide that decision.

Key Features

• Push-to-connect tube ports accept 5/16 inch OD tubing with no ferrules or tools required
• 1/8 inch NPTF male branch thread provides a pressure-tight mechanical seal
• Nickel-plated brass body resists corrosion in moderate-duty fluid and pneumatic service
• Nitrile O-ring compatible with a wide range of pneumatic and general-purpose fluid media
• UL94 V-0 rated flame-resistant black release button
• Rated to 300 psi maximum working pressure across a 0 to 200 degrees F operating range

Compatibility

Designed for use with 5/16 inch OD tubing in push-to-connect pneumatic and fluid systems requiring a 1/8 inch NPTF male branch tee connection. No specific OEM model compatibility was provided in product data.

Installation Notes

Installation is typically performed by HVAC technicians, plumbers, or instrumentation technicians. Before making or breaking any fitting connection, depressurize and isolate the line completely. Ensure tubing is cut square and deburred before inserting into the push-to-connect port to achieve a proper seal. To release tubing, depress the collar button fully before pulling the tube free.
