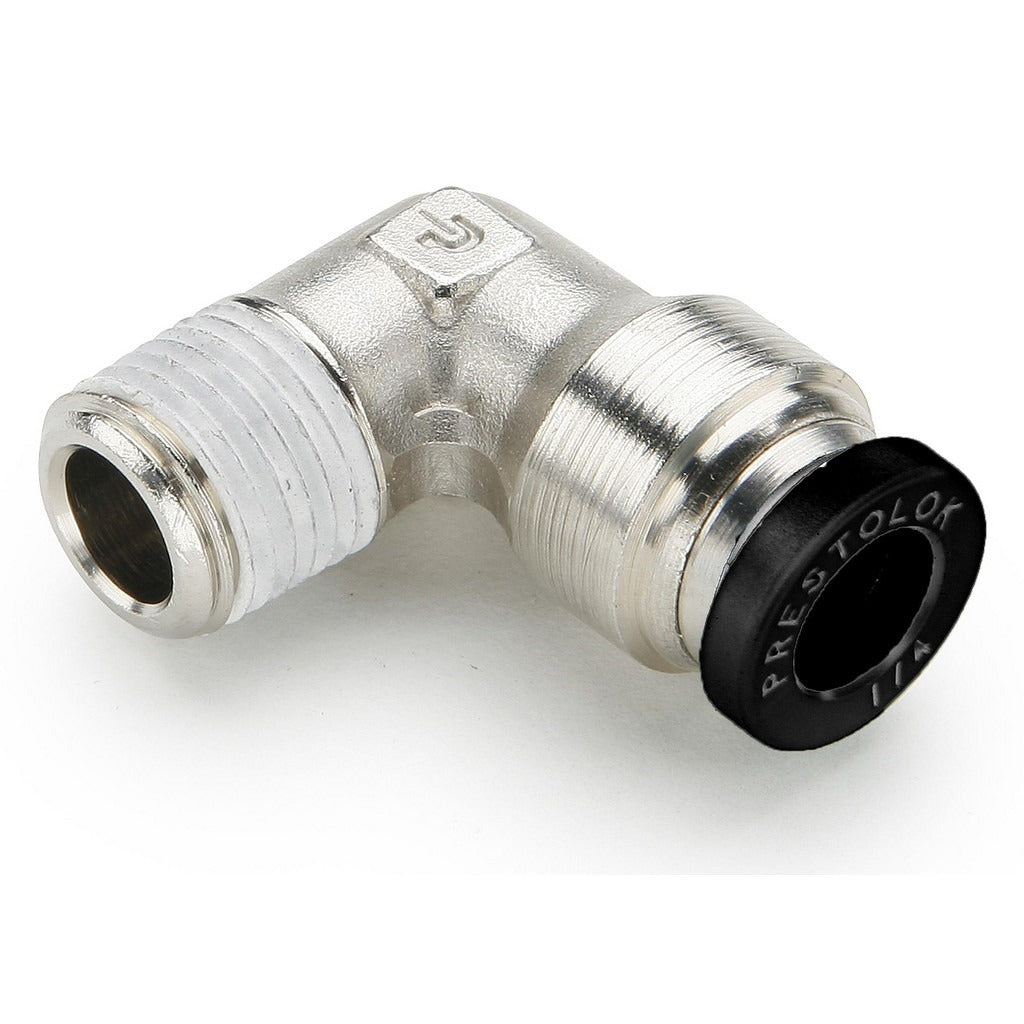

Parker W169PLPNS5/32-2 90 Male Elbow Fitting 5/32 Od

Product Description

The PARKER W169PLPNS5/32-2 is a push-to-connect 90-degree male elbow tube fitting designed for quick, tool-free tube connections in pneumatic and fluid control systems. Constructed from nickel-plated brass, it accepts 5/32 inch OD tubing on the push-to-connect end and threads into a 1/8 inch NPTF male port on the other. It is rated to 300 psi maximum working pressure and handles temperatures from 0 degrees F to 200 degrees F. The nitrile O-ring provides a reliable seal across a wide range of media. Licensed HVAC technicians, plumbers, and fluid power specialists routinely use this fitting to route tubing at right angles while maintaining a secure, leak-resistant connection.

This fitting suits residential and light commercial pneumatic control lines, instrumentation tubing, and fluid distribution systems where a compact 90-degree directional change is required. It is particularly useful in tight equipment enclosures where rigid tubing must transition to an NPT-threaded port without additional adapters. The push-to-connect design reduces assembly time compared to compression-style alternatives.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure retention
• 90-degree male elbow configuration enables right-angle routing in confined spaces
• Nickel-plated brass body resists corrosion and suits a range of pneumatic media
• Rated to 300 psi maximum working pressure
• Nitrile O-ring provides a durable, leak-resistant seal
• Black flame-resistant button is UL94 V-0 compliant

Compatibility

Designed as an OEM-style push-to-connect elbow for pneumatic and fluid control systems using 5/32 inch OD tubing with a 1/8 inch NPTF male port connection.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid piping systems. De-pressurize and isolate the system completely before removing or installing any fittings. Ensure tubing is cut cleanly and squarely and is free of burrs before inserting into the push-to-connect port. Thread engagement should comply with applicable standards such as ASME B1.20.3 for NPTF connections; do not overtighten, as this may damage the fitting body.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
