Parker W169PLPNS-5-2 90 Male Elbow Fitting 5/16in Od

Product Description

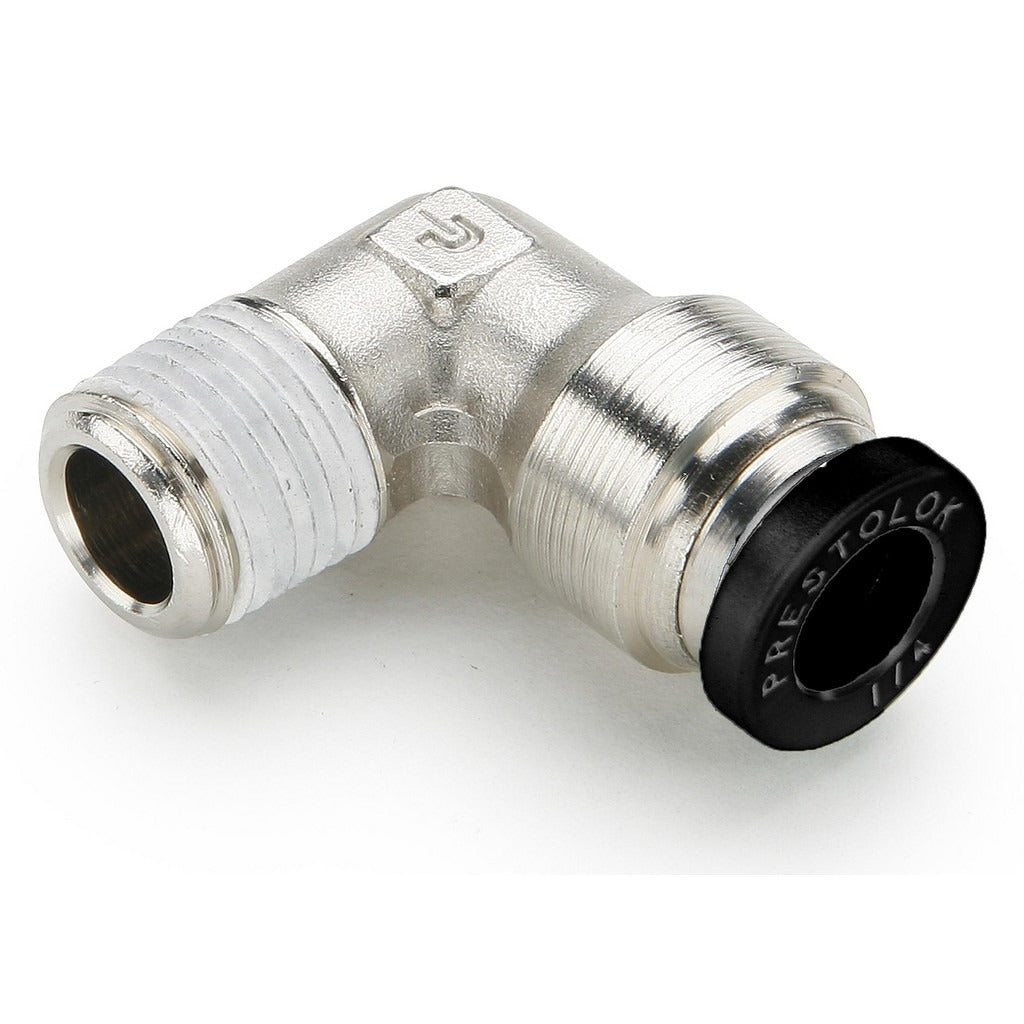

The PARKER W169PLPNS-5-2 is a push-to-connect 90-degree male elbow tube fitting designed for quick, tool-free tube connections in pneumatic and fluid systems. It accepts 5/16-inch OD tubing on both tube ends and connects to a 1/8-inch NPTF male thread port. Constructed from nickel-plated brass, this fitting is rated for a maximum working pressure of 300 psi and handles temperatures from 0 to 200 degrees F. The push-to-connect mechanism allows a technician to seat tubing with a single push and release it by pressing the integrated button, which is made from black flame-resistant material rated to UL94 V-0. The nitrile O-ring provides a reliable seal across a broad range of media.

This fitting is suited for residential and light commercial HVAC, refrigeration, compressed air, and fluid-transfer applications where a right-angle direction change is needed between a threaded port and tubing runs. It is a practical choice in equipment panels, control enclosures, and instrument lines where space is limited and fast reconnection is an operational advantage. Licensed HVAC technicians, plumbers, and industrial mechanics are the typical installers. The UL94 V-0 flame-resistant button material makes it appropriate for installations in enclosures where flame-spread ratings are a code consideration.

Key Features

• Push-to-connect design allows tool-free tube insertion and single-button release
• 90-degree elbow configuration routes tubing at a right angle to a male NPT port
• Nickel-plated brass body resists corrosion and handles moderate-pressure service up to 300 psi
• Nitrile O-ring provides a dependable seal compatible with a wide range of pneumatic and fluid media
• Black release button meets UL94 V-0 flame-resistant material standard
• Rated for service from 0 to 200 degrees F

Compatibility

Designed for use with 5/16-inch OD tubing and 1/8-inch NPTF male threaded ports. Compatible with pneumatic, compressed-air, and general fluid-transfer systems that accept push-to-connect fittings in this tube and thread size combination.

Installation Notes

Depressurize and isolate the system completely before removing or installing any push-to-connect fittings. Ensure tubing is cut cleanly and squarely and that the OD is free of burrs, scoring, or deformation before insertion to guarantee a leak-free seat. Thread the NPTF male end into the mating port using appropriate thread sealant per the system manufacturer's recommendations and applicable codes. After pressurizing, verify the joint for leaks before returning the system to service.
