Parker W169PLPNS-4-2 90 Male Elbow 1/4 Od 1/8 Nptf Brass

Product Description

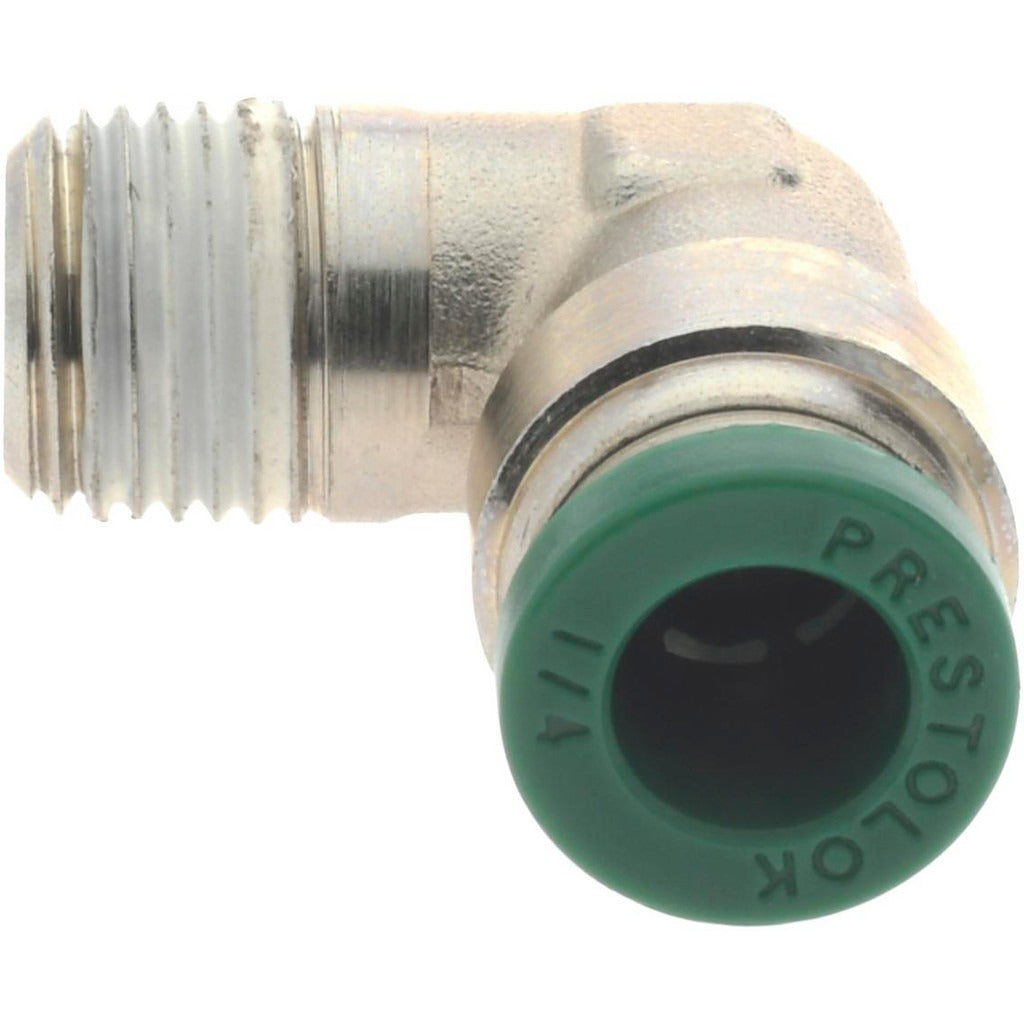

The PARKER W169PLPNS-4-2 is a push-to-connect 90-degree male elbow tube fitting designed for quick, tool-free tube connections in pneumatic and fluid-transfer applications. It accepts 1/4-inch OD tubing on each push-to-connect port and transitions to a 1/8-inch NPTF male threaded end. Constructed from nickel-plated brass, this fitting is rated to 300 psi and handles working temperatures from 0 degrees F to 200 degrees F. Nitrile o-rings provide reliable sealing, while the black flame-resistant push button meets UL94 V-0 requirements. HVAC technicians, plumbers, and pneumatic system installers use this type of fitting to make fast, secure connections without additional compression tools.

This fitting is suited for general-purpose pneumatic and fluid-line work in both residential and light commercial settings. The 90-degree elbow geometry is useful in tight quarters where straight fittings cannot route tubing cleanly. Typical applications include compressed air lines, control tubing, and low-pressure fluid circuits. It meets D.O.T. FMVSS571.106, SAE J2494, SAE J2494-3, and SAE J844 standards, making it appropriate for systems requiring recognized industry compliance.

Key Features

• Push-to-connect design on tube ports allows fast, tool-free tube insertion and release
• 1/4-inch OD tube connection with 1/8-inch NPTF male thread transition
• Nickel-plated brass construction resists corrosion in general-purpose environments
• 300 psi maximum working pressure
• Operating temperature range of 0 degrees F to 200 degrees F
• UL94 V-0 flame-resistant black push button; nitrile o-ring seals
• Compliant with D.O.T. FMVSS571.106, SAE J2494, SAE J2494-3, and SAE J844

Compatibility

Designed for general-purpose pneumatic and fluid-transfer tubing systems using 1/4-inch OD tubing with 1/8-inch NPTF male threaded ports. Suitable for use in applications where D.O.T., SAE J2494, and SAE J844 compliance is required.

Installation Notes

Depressurize and de-energize the system fully before removing or installing any push-to-connect fittings. Verify that the mating thread is NPTF before installation, as thread form affects seal integrity. Inspect tubing ends for burrs or damage before insertion; tubing should be cut square and clean for a proper push-to-connect seal. Follow applicable pneumatic or fluid-system codes and the fitting manufacturer guidelines for torque and thread sealant use on the NPTF port.
