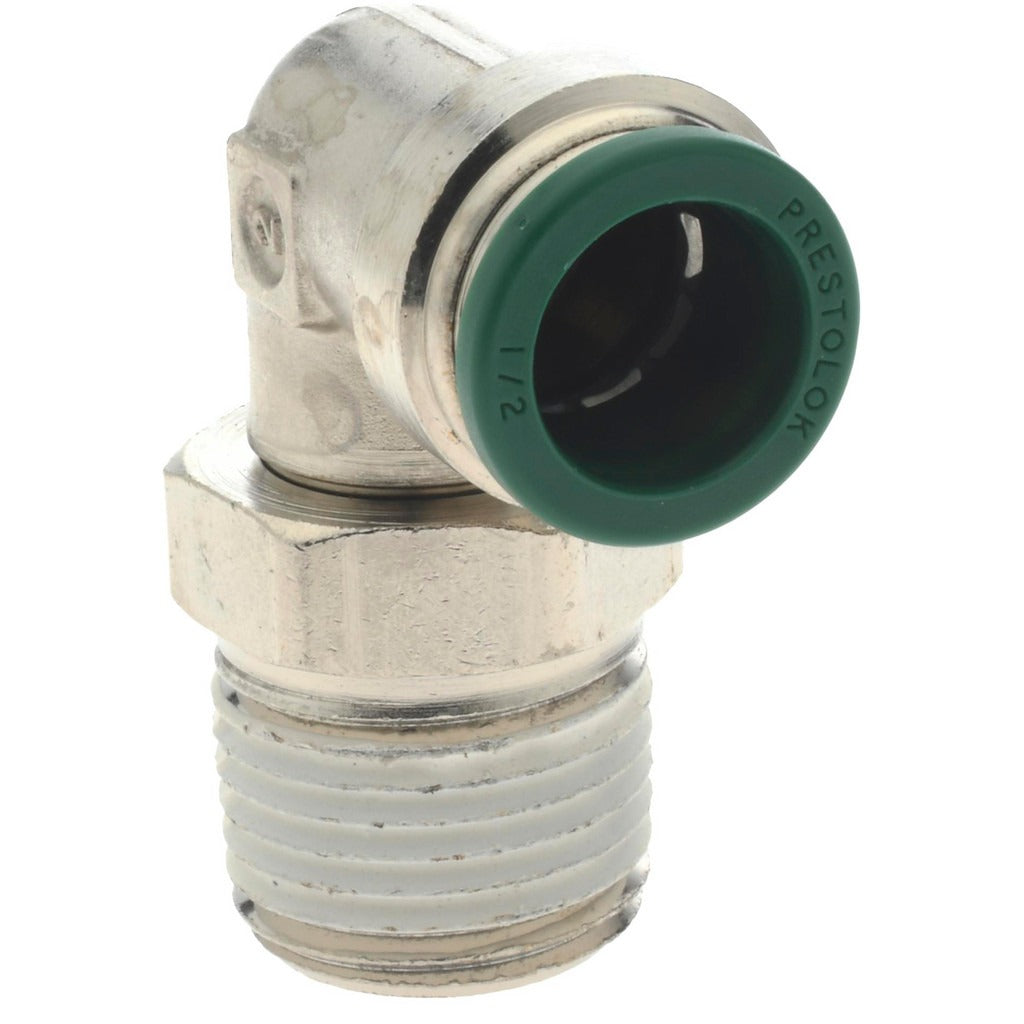

Parker W169PLP-8-8 Push-to-connect 90 Male Elbow 1/2 in

Product Description

The PARKER W169PLP-8-8 is a push-to-connect 90-degree male elbow tube fitting constructed from nickel-plated brass. It connects 1/2-inch OD tubing to a 1/2-inch NPTF male threaded port in a right-angle orientation. Rated to 300 psi with an operating temperature range of 0 to 200 degrees F, this fitting is engineered for general-purpose pneumatic and fluid line applications. The push-to-connect mechanism allows fast, tool-free tube insertion while the NPTF thread end provides a pressure-tight mechanical seal. The release button is black flame-resistant material rated to UL94 V-0. Licensed plumbers, HVAC technicians, and fluid systems mechanics typically install this fitting in compressed air, brake, and pneumatic control lines.

This fitting is designed for general-purpose use in systems requiring a 90-degree change of direction between an OD tube and a male NPT port. It is appropriate for both light industrial and mobile equipment pneumatic circuits. Compliance with D.O.T. FMVSS571.106, SAE J2494, SAE J2494-3, and SAE J844 makes it suitable for air brake and hydraulic brake line service where those standards are required. The nitrile O-ring provides reliable sealing across a broad range of compatible fluids and gases within the rated temperature and pressure limits.

Key Features

• Push-to-connect tube entry for fast, tool-free installation on 1/2-inch OD tubing
• 1/2-inch NPTF male thread for pressure-tight port connection
• Nickel-plated brass construction for corrosion resistance
• 300 psi maximum working pressure
• Operating temperature range: 0 to 200 degrees F
• UL94 V-0 flame-resistant black release button
• Nitrile O-ring for broad fluid compatibility

Compatibility

Designed for general-purpose pneumatic and fluid line applications with 1/2-inch OD tubing and 1/2-inch NPTF male ports. Meets D.O.T. FMVSS571.106, SAE J2494, SAE J2494-3, and SAE J844 standards.

Installation Notes

Depressurize and drain the system completely before removing or installing any fittings. Ensure tubing is cut square and deburred before insertion into the push-to-connect end to achieve a proper seal. Thread the NPTF male end by hand first to avoid cross-threading, then tighten to the appropriate thread engagement. To release tubing, press the collet ring fully and pull the tube straight out.
