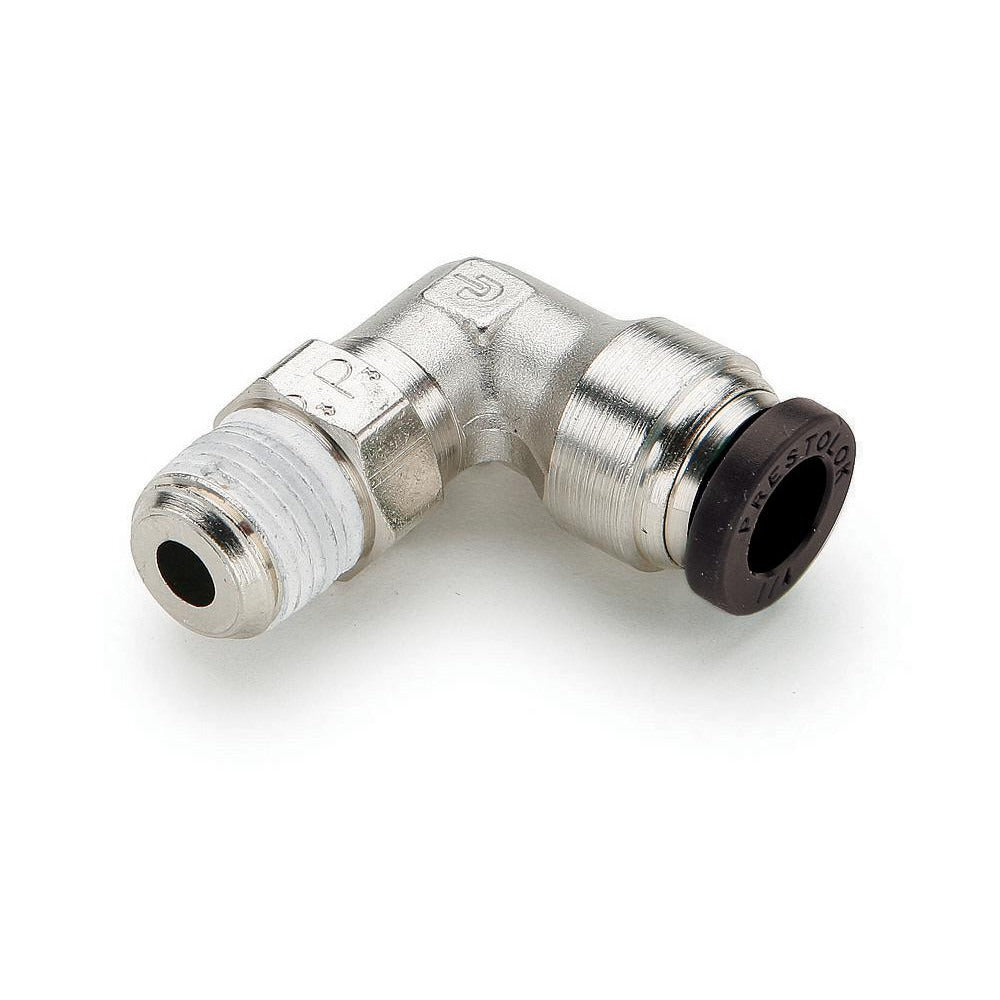

Parker W169PLP-5/32-4 90 Male Elbow Fitting 5/32 in Od

Product Description

The PARKER W169PLP-5/32-4 is a push-to-connect 90-degree male elbow tube fitting made from nickel-plated brass. It connects a 5/32-inch OD tube to a 1/4-inch NPTF male threaded port, allowing a right-angle change of direction in a pneumatic or fluid line. The fitting accepts tube insertion on one end and threads into a male NPT port on the other, with a black button actuator for tube release. The button is made from black flame-resistant material rated to UL94 V-0. Maximum working pressure is 300 psi, and the fitting is rated for operating temperatures from 0 degrees F to 200 degrees F. Nitrile O-rings provide the internal seal. HVAC technicians, pneumatic system installers, and plumbing professionals commonly work with this fitting type.

This fitting is suited for use in pneumatic control circuits, instrument air lines, and low-pressure fluid systems in both residential and light commercial applications. The 90-degree elbow configuration is particularly useful in tight enclosures or panel installations where tubing must change direction close to a threaded port. Push-to-connect design allows fast tube insertion without additional tools, speeding up assembly and service work on equipment where access is limited.

Key Features

• 90-degree male elbow with push-to-connect tube entry and 1/4-inch NPTF male thread
• Nickel-plated brass body for corrosion resistance in pneumatic and fluid service
• Rated to 300 psi maximum working pressure
• Operating temperature range of 0 degrees F to 200 degrees F
• UL94 V-0 rated flame-resistant black release button
• Nitrile O-ring seal for reliable tube retention and leak resistance

Compatibility

Designed for use with 5/32-inch OD tubing and 1/4-inch NPTF male threaded ports in pneumatic or fluid line applications. No specific equipment model compatibility was provided in the product data.

Installation Notes

Installation and removal should be performed by a qualified technician familiar with pneumatic or fluid plumbing systems. Depressurize the system fully before removing or installing any push-to-connect fitting. Thread the NPTF male end into the receiving port by hand first, then tighten with an appropriate wrench, taking care not to overtighten and crack the fitting body. Insert tube straight into the push-to-connect end until it seats fully; to remove, press the release button and pull the tube straight out.
