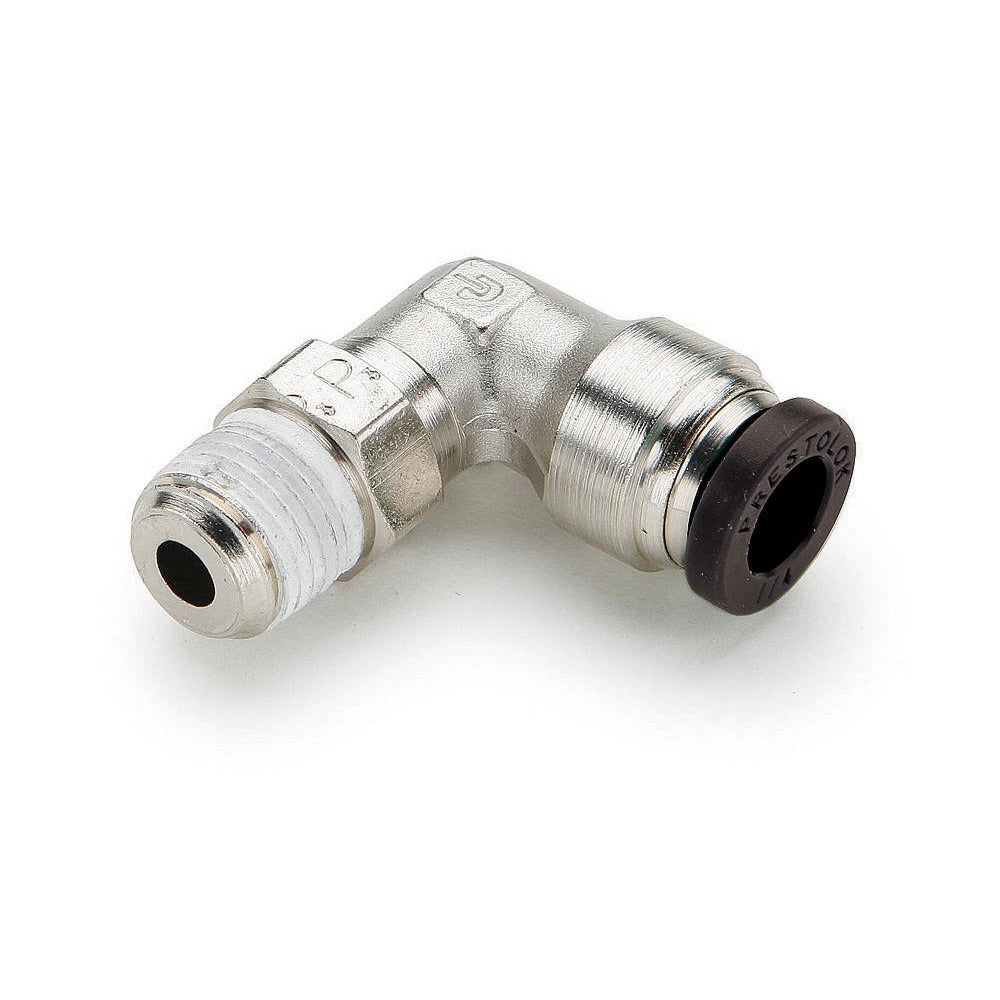

Parker W169PLP-5/32-1 90 Swivel Male Elbow 5/32 Od

Product Description

The PARKER W169PLP-5/32-1 is a push-to-connect 90-degree swivel male elbow fitting designed for tube-to-tube-to-male connections in pneumatic and fluid control systems. Constructed from nickel-plated brass, it accepts 5/32 inch OD tubing and terminates in a 1/16 inch NPTF male thread. The fitting is rated to 300 psi maximum working pressure and handles temperatures from 0 degrees F to 200 degrees F. The green release button is made from black flame-resistant material that meets the UL94 V-0 standard. HVAC technicians, pneumatic system installers, and fluid control specialists use this fitting in low-flow instrumentation and control lines.

This fitting suits residential and light commercial pneumatic tubing systems where a 90-degree directional change is needed in a compact space. The swivel male end allows the fitting to be oriented without twisting the tubing, simplifying routing in tight control panels or equipment enclosures. Typical applications include pneumatic control circuits, instrument air lines, and small-bore fluid transfer runs where push-to-connect convenience reduces assembly time.

Key Features

• Push-to-connect design accepts 5/32 inch OD tubing without tools for fast assembly
• 90-degree swivel male end allows angular positioning without stressing tubing
• Nickel-plated brass body resists corrosion in pneumatic and light fluid service
• 300 psi maximum working pressure rating for pneumatic control applications
• Rated from 0 degrees F to 200 degrees F for broad temperature coverage
• UL94 V-0 compliant flame-resistant release button material

Compatibility

Designed as an OEM-style push-to-connect replacement fitting for pneumatic and instrument tubing systems using 5/32 inch OD tubing and 1/16 inch NPTF male thread connections.

Installation Notes

Installation is performed by pneumatic system technicians or licensed HVAC mechanics. Before servicing any pneumatic line, depressurize the system completely and verify zero pressure with a gauge before disconnecting fittings. Insert tubing fully until it seats to ensure a leak-free connection; to release, depress the release button while pulling the tubing straight out. Verify the NPTF male thread is not cross-threaded during installation and apply appropriate thread sealant per job specifications and applicable codes.
