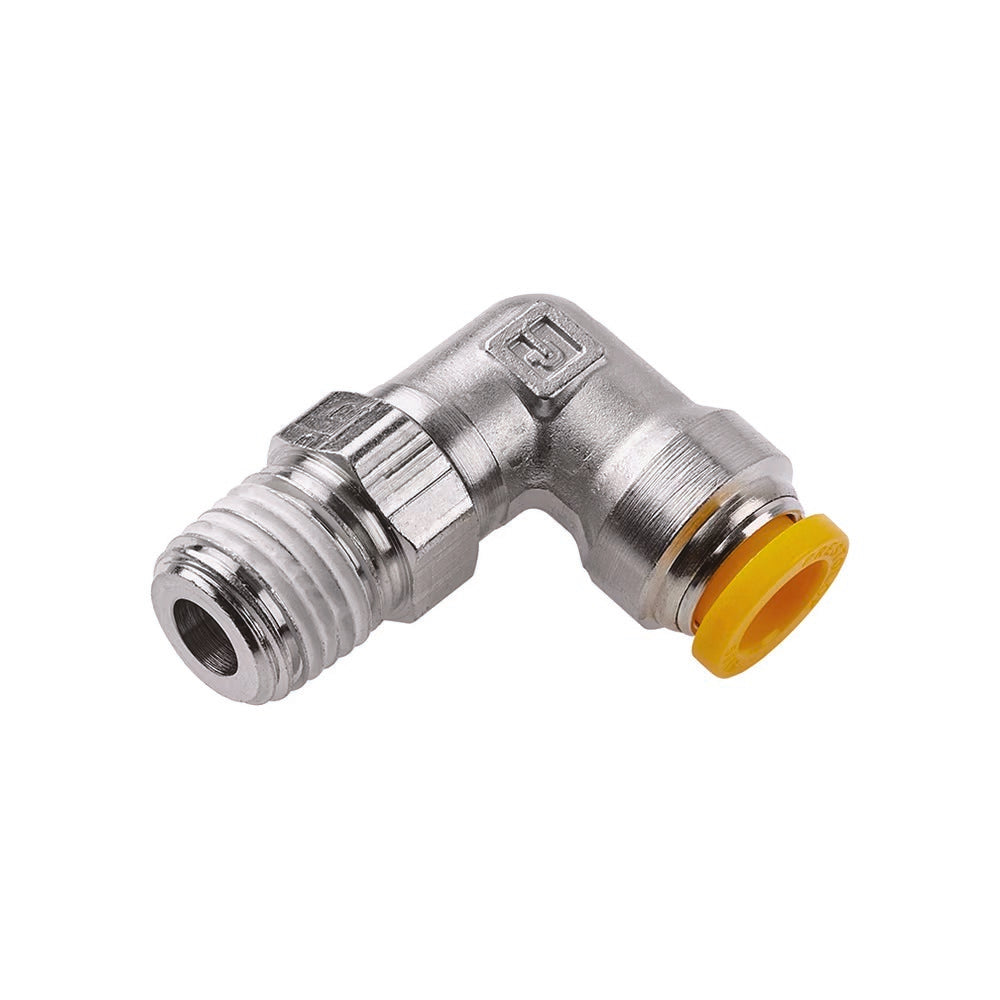

Parker W169PLP-4M-2R 90 Swivel Male Elbow 4mm 1/8 Bspt

Product Description

The PARKER W169PLP-4M-2R is a push-to-connect 90-degree swivel male elbow fitting designed for tube-to-male tube connections in pneumatic and fluid control systems. Built from nickel-plated brass, it accepts a 4mm outside diameter tube and threads into a 1/8 BSPT male port. The fitting is rated to 300 psi maximum working pressure and handles temperatures from 0 degrees F to 200 degrees F. A yellow release button allows tool-free tube removal. The silicone-free grease and UL94 V-0 flame resistance rating make it suitable for applications where silicone contamination is a concern.

This fitting is used in residential and light commercial pneumatic control lines, instrumentation tubing runs, and compressed-air plumbing where a compact 90-degree direction change from a male-threaded port is needed. The swivel design allows the body to rotate after installation, which simplifies alignment in tight panel or manifold layouts. It is typically installed by HVAC technicians, instrumentation mechanics, and industrial plumbers working on control-circuit tubing and pneumatic actuator lines.

Key Features

• Push-to-connect design allows tool-free tube insertion and yellow-button release
• Swivel body rotates after assembly for easy tube alignment in confined spaces
• Nickel-plated brass construction resists corrosion in pneumatic and light fluid service
• Rated to 300 psi maximum working pressure
• Operating temperature range: 0 degrees F to 200 degrees F
• Silicone-free grease meets UL94 V-0 flame resistance standard

Compatibility

Designed for use with 4mm outside diameter push-to-connect tubing and 1/8 BSPT male-threaded ports in pneumatic control and instrumentation systems.

Installation Notes

Depressurize the system and verify zero pressure before removing or installing any push-to-connect fitting. Cut tubing cleanly and squarely with a proper tube cutter to ensure a leak-free push-in connection. Hand-thread the BSPT male end into the port and snug with a 7/16 inch wrench. After pressurizing, verify the connection with a leak-detection solution before returning the system to service.
