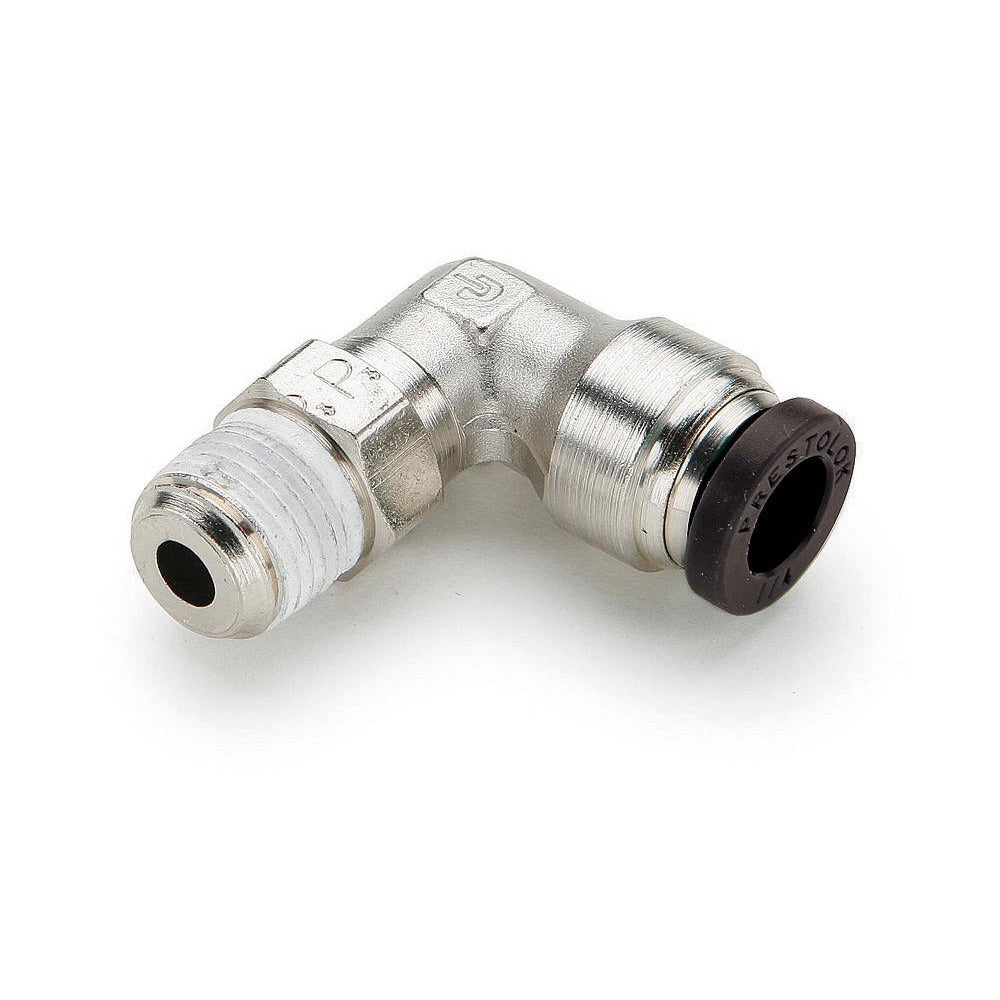

Parker W169PLP-4-1 90 Swivel Male Elbow 1/4 in Od

Product Description

The PARKER W169PLP-4-1 is a push-to-connect 90-degree swivel male elbow fitting designed for tube-to-tube-to-male connection configurations in pneumatic and fluid control systems. Constructed from nickel-plated brass with a silver finish, it accepts 1/4 inch OD tubing and features a 1/16 inch NPTF male thread. The fitting is rated to 300 psi maximum working pressure and handles temperatures from 0 degrees F to 200 degrees F. The release button is molded from black flame-resistant material rated UL94 V-0. HVAC technicians, plumbers, and pneumatic system technicians are the primary installers of this fitting type.

This fitting is suited for residential and light commercial pneumatic tubing runs where a 90-degree directional change is required at a male-threaded port. The swivel design allows the tube outlet to be repositioned after installation, reducing strain on tubing routed in tight enclosures or control panels. The 1/4 inch OD push-to-connect end accepts standard nylon or polyurethane tubing commonly used in control circuits, instrument air lines, and low-pressure fluid transfer applications.

Key Features

• Push-to-connect design for tool-free tube insertion and secure retention
• Swivel male elbow allows tube outlet angle adjustment after assembly
• Nickel-plated brass construction for corrosion resistance in moderate-duty service
• UL94 V-0 rated flame-resistant black release button
• Rated to 300 psi maximum working pressure
• Operating temperature range: 0 degrees F to 200 degrees F

Compatibility

Designed for use with 1/4 inch OD tubing in push-to-connect pneumatic and fluid control systems requiring a 1/16 inch NPTF male thread connection at a 90-degree elbow.

Installation Notes

Installation is performed by HVAC technicians, plumbers, or pneumatic system technicians. Depressurize and isolate the system completely before removing or installing any fittings. Ensure tubing is cut cleanly and squarely and deburred before inserting into the push-to-connect port. To release tubing, depress the green release collar and pull the tube straight out. Thread the male NPTF end with an appropriate thread sealant compatible with the working fluid before torquing to the port.
