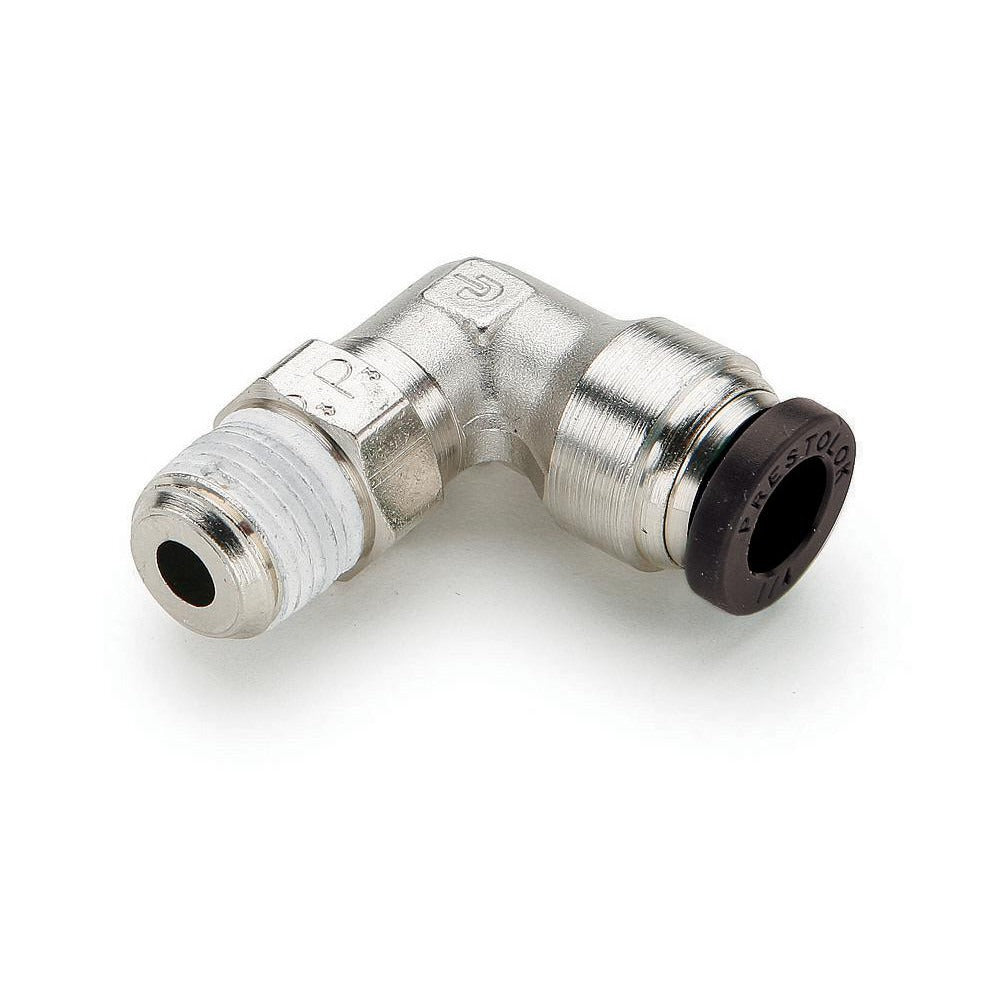

Parker W169PLP-2-4 90 Male Elbow Fitting 1/8 Od 1/4 Nptf

Product Description

The PARKER W169PLP-2-4 is a push-to-connect 90-degree male elbow tube fitting designed for quick, tool-free connections in pneumatic and fluid-handling systems. It accepts 1/8-inch OD tubing on the push-to-connect ends and terminates with a 1/4-inch NPTF male thread, allowing a right-angle transition from a threaded port to flexible tubing. The body is constructed from nickel-plated brass for corrosion resistance, and the release button is made from black, flame-resistant plastic rated to UL94 V-0. Rated to 300 psi maximum working pressure, this fitting handles service from 0 degrees F up to 200 degrees F. It is sold as an individual piece and is installed by HVAC technicians, plumbers, and pneumatic system technicians.

This fitting is well-suited for residential and light commercial applications where a pneumatic or fluid line must change direction at a threaded port. Common install scenarios include condensate drain systems, control air tubing runs, and pneumatic actuator supply lines. The 90-degree elbow configuration helps route 1/8-inch OD tubing away from panel walls, valve bodies, or manifold blocks without bending the tubing. The NPTF thread provides a pressure-tight seal without the need for additional sealant tape in many applications, though local codes and manufacturer instructions should always be followed. The nitrile O-ring inside the push-to-connect collet ensures a reliable grip and seal on compatible tubing.

Key Features

• Push-to-connect design on tube ports for fast, tool-free installation and removal
• 90-degree elbow geometry routes 1/8-inch OD tubing at a right angle to a threaded port
• 1/4-inch NPTF male thread for pressure-tight engagement at standard NPT ports
• Nickel-plated brass body resists corrosion in damp or humid environments
• UL94 V-0 rated black flame-resistant release button
• Nitrile O-ring collet seal maintains grip and leak-free connection on tubing

Compatibility

Designed as an OEM-style push-to-connect elbow fitting for pneumatic and fluid systems using 1/8-inch OD tubing with a 1/4-inch NPTF male threaded port connection.

Installation Notes

Installation is performed by a qualified HVAC technician, plumber, or pneumatic system technician. De-pressurize and isolate the system completely before removing or installing any fittings. Ensure tubing is cut cleanly and squarely, and that the OD is free of burrs or debris before inserting into the push-to-connect collet. Thread engagement should be made to the appropriate number of turns per applicable plumbing or pneumatic codes; do not overtighten the NPTF threads.
