Parker W169PLP-10M-6R 90 Swivel Male Elbow 10mm 3/8 Bspt

Product Description

The PARKER W169PLP-10M-6R is a push-to-connect 90-degree swivel male elbow fitting designed for tube-to-male connections in pneumatic and fluid systems. Constructed from nickel-plated brass with a UL94 V-0 flame-resistant, silicone-free grease finish, it accepts 10mm OD tubing on the push-in end and connects to a 3/8 BSPT male thread on the other. The fitting is rated to 300 psi maximum working pressure and handles temperatures from 0 degrees F to 200 degrees F. The swivel design allows the threaded end to rotate for alignment during installation, reducing stress on tubing runs. This fitting is typically installed by HVAC technicians, plumbers, and industrial service professionals working with metric push-to-connect tubing systems.

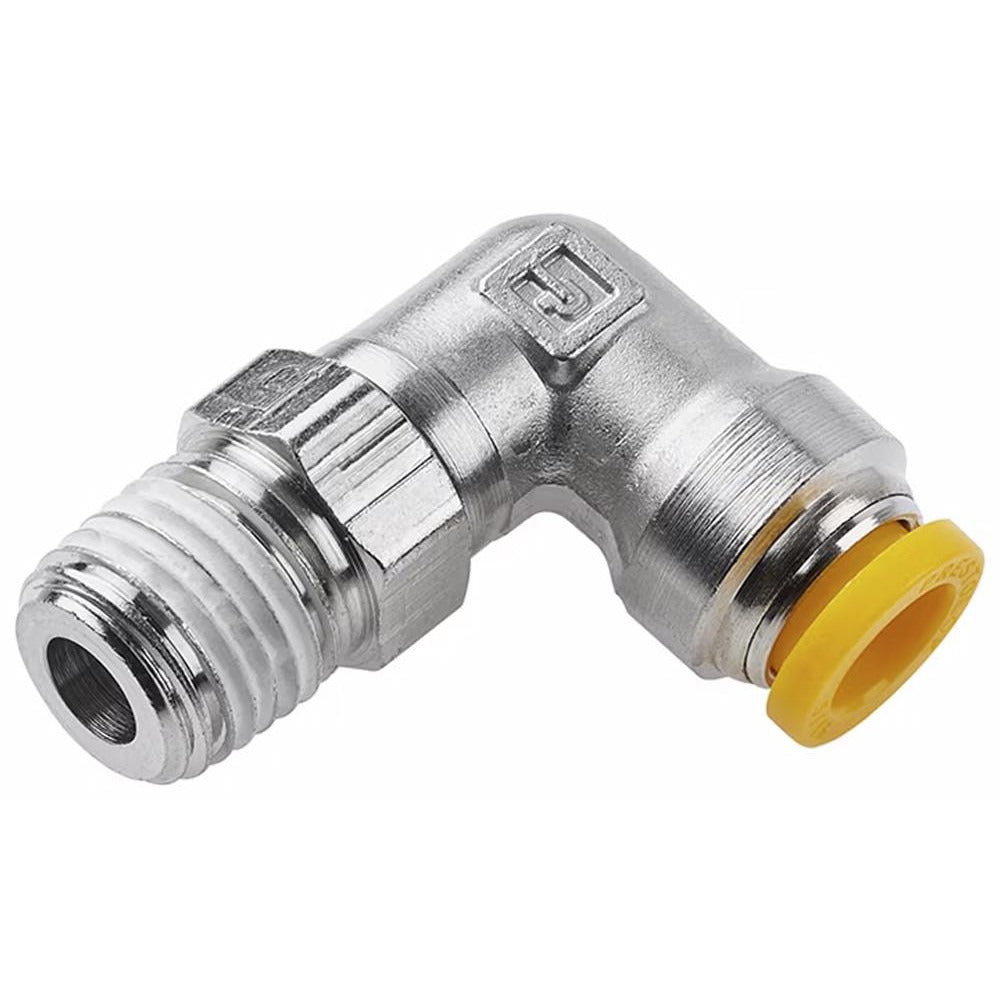

This fitting suits residential and light commercial applications where 10mm OD tubing meets a 3/8 BSPT male port at a 90-degree angle. Common install scenarios include pneumatic control lines, compressed air distribution, and fluid transfer systems requiring a direction change at the fitting. The silver body with yellow release button provides quick visual confirmation of the push-in connection and simplifies tube removal during service. It is sold individually and ships as a single-piece package.

Key Features

• Push-to-connect design accepts 10mm OD tubing without additional tools for the tube-side connection
• 90-degree swivel male elbow allows rotational alignment to 3/8 BSPT threaded ports
• Nickel-plated brass construction rated to 300 psi maximum working pressure
• Operating temperature range of 0 degrees F to 200 degrees F suits a wide range of service conditions
• UL94 V-0 flame resistance rating and silicone-free grease for compatibility with sensitive systems
• Yellow release button enables quick tube removal during maintenance or reconfiguration

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic and fluid systems using 10mm OD tubing and 3/8 BSPT male threaded ports requiring a 90-degree swivel elbow connection.

Installation Notes

Installation is performed by qualified HVAC technicians, plumbers, or pneumatic system technicians. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the 3/8 BSPT male thread is clean and apply appropriate thread sealant compatible with the system fluid before torquing the threaded side. Insert tubing fully into the push-in end until it seats, and confirm retention by applying light pull-back force on the tube before returning the system to service.
