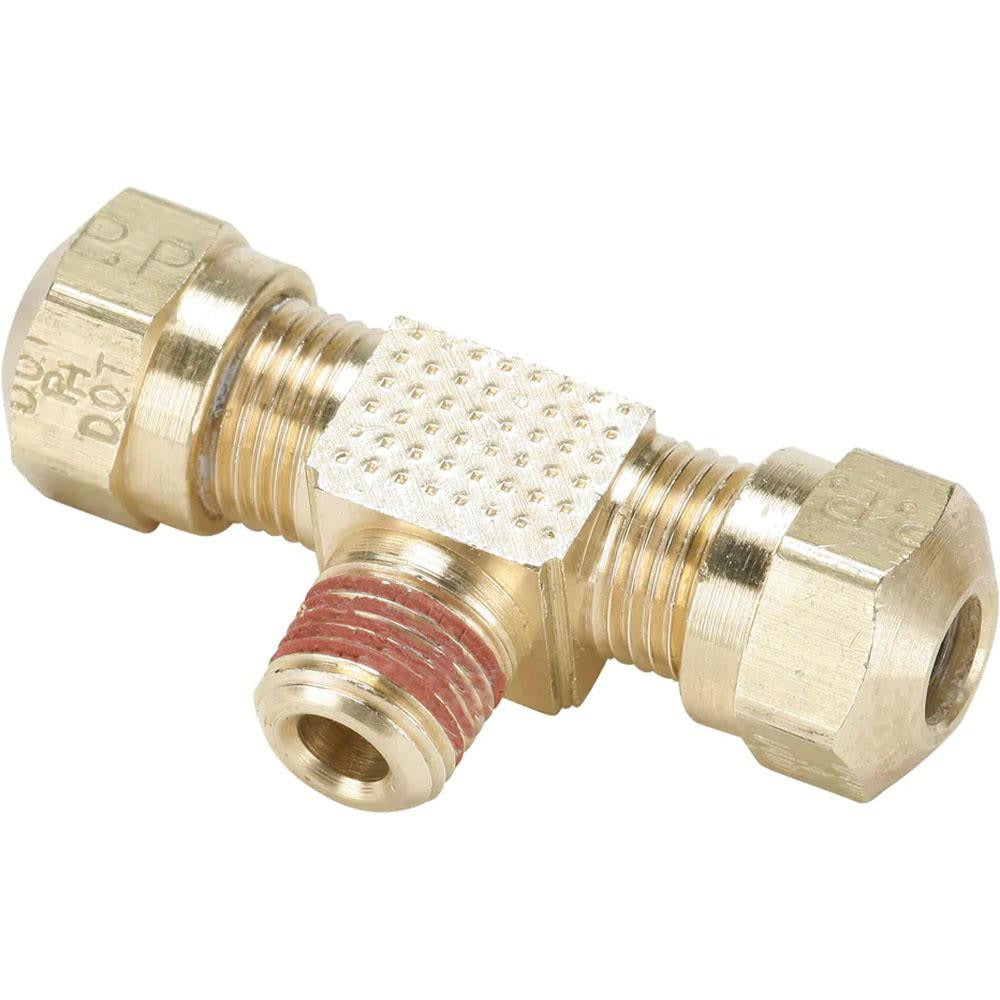

Parker VS272NTA-8-4 Compression Male Branch Tee 1/4 in

Product Description

The PARKER VS272NTA-8-4 is a brass compression tube male branch tee designed for hydraulic and pneumatic tubing systems requiring a three-way connection with a male NPT branch outlet. It features two compression end connections and one male NPT end, making it a common fitting choice for branching a tube run while adding a threaded port. Rated to 150 psi maximum working pressure and suitable for temperatures from -40 degrees F to 200 degrees F, this tee is built to meet D.O.T. FMVSS571.106, SAE J1131, and SAE J246 standards. Licensed HVAC technicians, plumbers, and fluid-systems mechanics working on compressed air, refrigeration lines, and fluid transfer systems typically install this fitting.

This fitting is suited for residential and light commercial applications where a branch connection is needed off an existing compression tube run. The male NPT branch port allows direct connection to valves, sensors, or threaded ports on manifolds and equipment housings. The 1/4-inch thread size and inside diameter of 0.338 inches makes it appropriate for small-bore tubing runs common in refrigeration, pneumatic controls, and hydraulic instrumentation lines. Its compliance with SAE J1131 and SAE J246 makes it a recognized choice for brake and fluid system work as well.

Key Features

• Brass construction provides corrosion resistance and reliable sealing in fluid and pneumatic systems
• Dual compression connections plus one male NPT port for flexible branch configurations
• Rated to 150 psi maximum working pressure
• Wide temperature range: -40 degrees F to 200 degrees F
• Meets D.O.T. FMVSS571.106, SAE J1131, and SAE J246 standards
• NPTF thread standard for pressure-tight connections without additional sealant in many applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for compression tube systems using 1/4-inch NPTF-threaded male branch tee configurations in refrigeration, pneumatic, and fluid-transfer applications.

Installation Notes

Installation should be performed by a qualified technician. Depressurize and isolate the tubing system completely before removing any fittings or cutting into the line. Compression fittings require proper tube preparation — cut tube ends square and deburr before seating the ferrule. Follow applicable codes, including SAE and D.O.T. requirements for brake and fluid-system work, and verify torque and seating per the system manufacturer's specifications.
