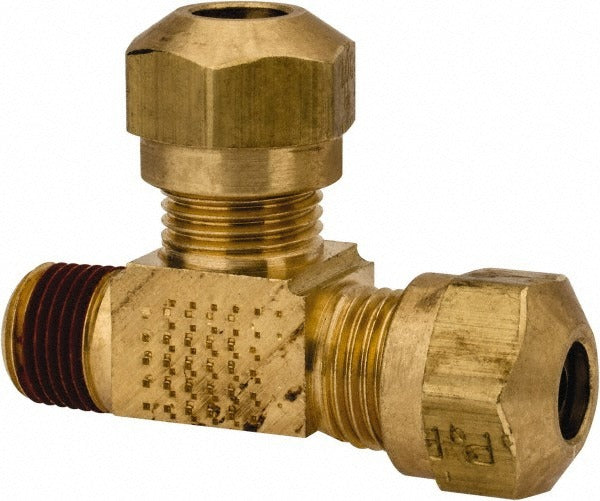

Parker VS271NTA-4-2 Compression Male Run Tee 1/8 Inch

Product Description

The PARKER VS271NTA-4-2 is a brass compression tube male run tee fitting designed for use in fluid and air line assemblies requiring a branch connection at a male NPT port. The fitting uses a compression x MNPT x compression end configuration, allowing a straight tube run to pass through while a 1/8 inch NPTF male threaded branch connects to a port or manifold. Rated to 150 psi maximum working pressure and a temperature range of -40 to 200 degrees F, this fitting is suited for moderate-pressure pneumatic and hydraulic tubing applications. It is installed by licensed plumbers, HVAC technicians, and fluid system technicians working on transport or stationary equipment.

This fitting is appropriate for use in compressed air lines, brake and fuel system plumbing on commercial vehicles, and other fluid conveyance assemblies where a tee connection off an existing tube run is required. Its DOT FMVSS571.106 compliance makes it suitable for use in automotive and truck brake line applications. SAE J1131 and SAE J246 certifications further qualify it for hydraulic and pneumatic fittings use in mobile and industrial systems. The inside diameter of 0.137 inches accommodates standard small-bore tubing typical of these applications.

Key Features

• Compression x MNPT x Compression end connections allow an in-line tee with a male NPT branch port
• 1/8 inch NPTF thread size on the male run branch
• Rated to 150 psi maximum working pressure
• Temperature range: -40 to 200 degrees F
• Brass construction for corrosion resistance in fluid and air line service
• Compliant with DOT FMVSS571.106, SAE J1131, and SAE J246 standards

Compatibility

Designed as an OEM-style compression tube fitting for small-bore pneumatic, hydraulic, and vehicular brake line assemblies requiring a 1/8 inch MNPT branch connection in a male run tee configuration.

Installation Notes

This fitting is installed by qualified plumbers, fluid power technicians, or automotive brake system technicians. Shut off all pressure to the line before disassembly or installation. Ensure tube ends are cut cleanly and deburred before inserting into compression sleeves to achieve a proper seal. Follow applicable DOT, SAE, and local code requirements for the specific system type being serviced.
