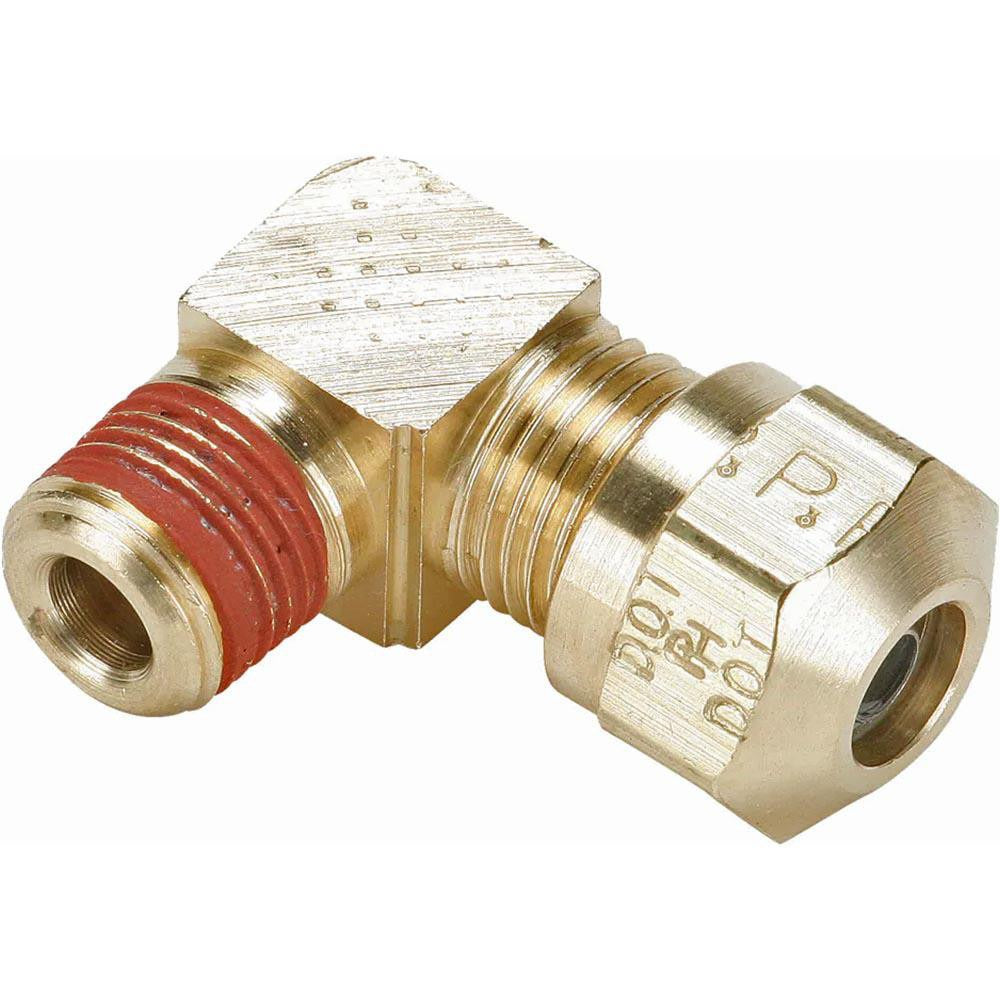

Parker VS269NTA-12-12 Compression Male Elbow 3/4 in

Product Description

The PARKER VS269NTA-12-12 is a brass compression tube male elbow fitting designed to connect a compression-style tube end to a male NPTF threaded port. The elbow configuration changes flow direction in a tubing run while maintaining a secure, leak-resistant seal. With a 3/4 inch thread size and a maximum working pressure of 150 psi, this fitting is built for demanding fluid and pneumatic line applications. It weighs 0.46 pounds and is rated for temperatures from -40 degrees F to 200 degrees F. Licensed HVAC technicians, plumbers, and fluid power mechanics install this type of fitting when routing tubing around obstructions or transitioning between compression tube and NPT threaded components.

This fitting is suited for residential and light commercial applications where a compression-to-MNPT elbow connection is required in hydraulic, pneumatic, or fluid transfer lines. Compliance with D.O.T. FMVSS571.106, SAE J1131, and SAE J246 makes it appropriate for use in regulated brake and fuel line systems as well as general industrial tubing assemblies. It is sold individually and is a direct-use component requiring no additional hardware beyond the mating tube and threaded port.

Key Features

• Brass construction provides corrosion resistance and reliable sealing in fluid and gas line applications
• Compression x MNPT end connections allow transition between compression tube and male NPTF threaded ports
• 3/4 inch thread size with NPTF thread standard for pressure-tight engagement
• Rated to 150 psi maximum working pressure
• Wide temperature range from -40 degrees F to 200 degrees F
• Meets D.O.T. FMVSS571.106, SAE J1131, and SAE J246 standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for compression tube to male NPT elbow applications in systems requiring D.O.T., SAE J1131, and SAE J246 compliant components.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or fluid power mechanic. Shut off and depressurize the line completely before removing or installing any compression fitting. Ensure the mating tube end is cut cleanly and deburred before seating into the compression end. Follow applicable codes including SAE and D.O.T. requirements for the specific system being serviced.
