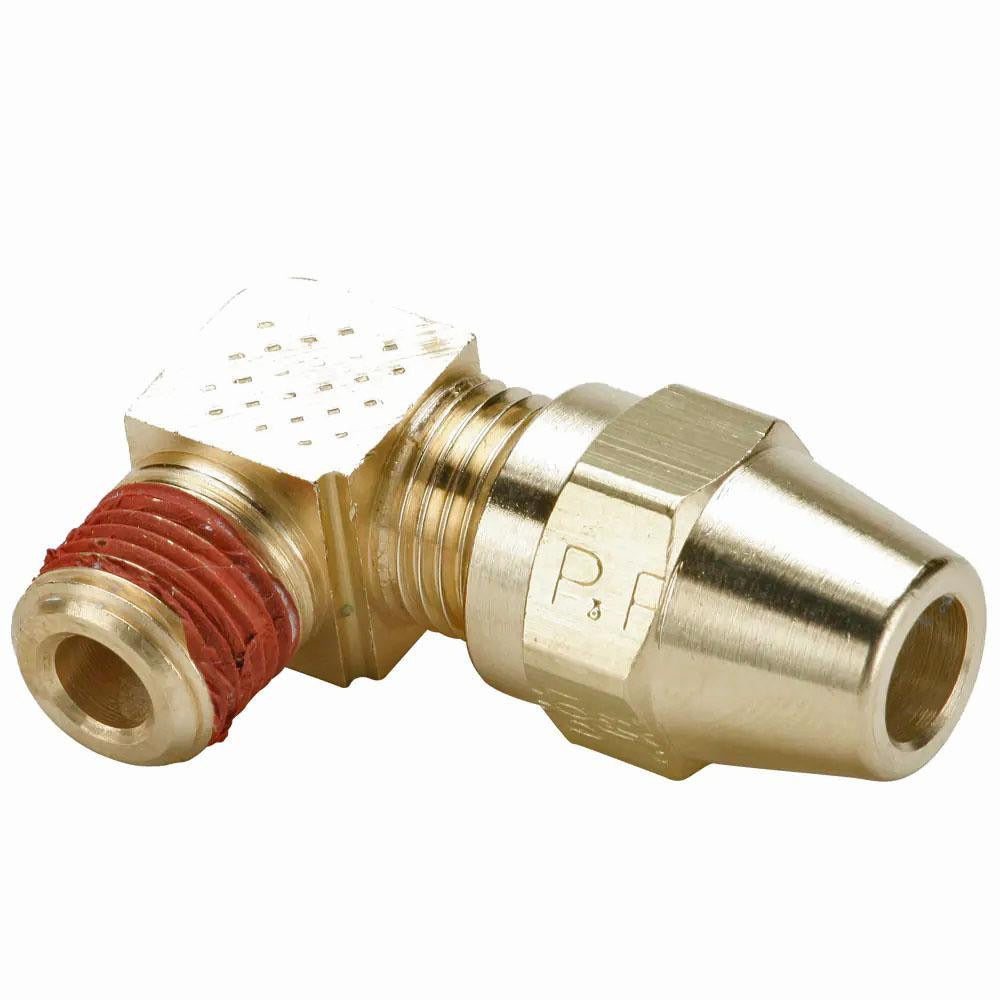

Parker VS269AB-8-6 Compression Male Elbow 3/8-18 Nptf Brass

Product Description

The PARKER VS269AB-8-6 is a brass compression tube male elbow fitting designed for use in hydraulic, pneumatic, and fluid transfer line assemblies. It transitions from a compression tube connection to a male NPTF threaded port, changing flow direction at a 90-degree angle. The fitting is rated for a maximum working pressure of 400 psi and handles temperatures ranging from -65 degrees F to 250 degrees F. Constructed from brass, it provides reliable corrosion resistance in a wide range of fluid media. Licensed plumbers, HVAC technicians, and fluid system installers rely on this type of fitting for secure, leak-resistant tube-to-port connections in both mobile and stationary equipment.

This fitting is suited for residential and light commercial fluid system applications where a compression tube line must terminate at a male NPTF port at a right angle. Common installations include refrigeration lines, pneumatic control circuits, hydraulic brake systems, and fuel system plumbing where DOT-compliant fittings are required. The 3/8-18 NPTF thread size is a standard trade size found across a broad range of valves, manifolds, and equipment housings. Compliance with D.O.T. FMVSS571.106 and SAE J246 makes it appropriate for mobile equipment and vehicular brake line applications.

Key Features

• Brass construction offers corrosion resistance and compatibility with a wide range of fluid media
• 400 psi maximum working pressure rating supports demanding hydraulic and pneumatic applications
• Operating temperature range of -65 degrees F to 250 degrees F for wide service envelope
• Compression x Male NPTF end connections provide a secure, leak-resistant assembly without soldering
• Compliant with D.O.T. FMVSS571.106 and SAE J246 standards
• 3/8-18 NPTF thread size is a widely stocked trade standard

Compatibility

Designed as an OEM-style replacement or service fitting for compression tube assemblies requiring a 3/8-18 NPTF male elbow connection in DOT-compliant fluid system applications.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified fluid systems mechanic. Depressurize and drain the system fully before removing or installing any compression fitting. Compression fittings do not require thread sealant on the tube side, but male NPTF threads may be assembled with an appropriate thread sealant per system requirements and applicable codes. Do not overtighten the compression nut, as this can deform the ferrule and compromise the seal.
