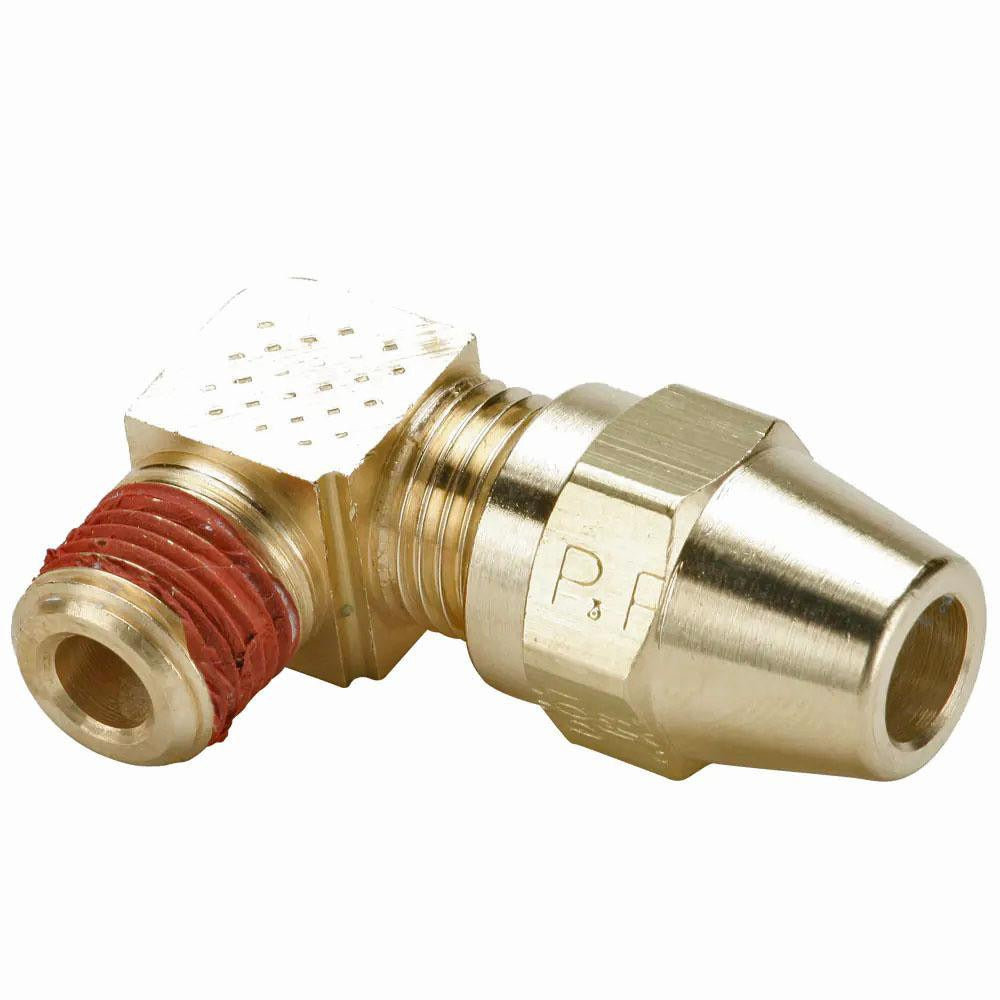

Parker VS269AB-8-4 Compression Male Elbow 1/4-18 Nptf

Product Description

The PARKER VS269AB-8-4 is a brass compression tube male elbow fitting designed to connect tubing to a male NPTF threaded port at a 90-degree angle. It accepts a 1/4-18 NPTF thread and uses a compression-style tube end connection with an inside diameter of 0.314 inches. Rated for a maximum working pressure of 400 psi and a temperature range of -65 degrees F to 250 degrees F, this fitting is built for demanding fluid and pneumatic line applications. It meets D.O.T. FMVSS571.106 and SAE J246 standards, making it suitable for brake and hydraulic line work in mobile and industrial service environments.

This fitting is used in plumbing, HVAC, refrigeration, and mobile equipment applications where a tubing run must transition to a male NPTF threaded fitting at a right angle. The compression end eliminates the need for flaring or soldering, allowing a straight tube to be secured with a ferrule and nut. Licensed plumbers, HVAC technicians, and fleet maintenance professionals commonly install this type of fitting in tight-clearance spaces where a straight fitting would not route cleanly.

Key Features

• Compression x Male NPTF end connections allow tool-free tube preparation — no flaring or soldering required
• Brass construction provides corrosion resistance and compatibility with a wide range of fluids
• Rated to 400 psi maximum working pressure for high-pressure line service
• Wide service temperature range of -65 degrees F to 250 degrees F
• Meets D.O.T. FMVSS571.106 and SAE J246 standards for safety-critical brake and hydraulic applications
• 1/4-18 NPTF thread size for a pressure-tight mechanical seal without sealant tape

Compatibility

Designed as an OEM-style replacement or service fitting for compression tube-to-male NPTF connections in fluid, pneumatic, and brake line systems requiring DOT-compliant hardware.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified mechanic. Depressurize and drain the line completely before removing any existing fittings. Ensure the compression ferrule and nut are properly seated on the tube before tightening to avoid leaks. Verify thread engagement and pressure-test the assembly before returning the system to service.
