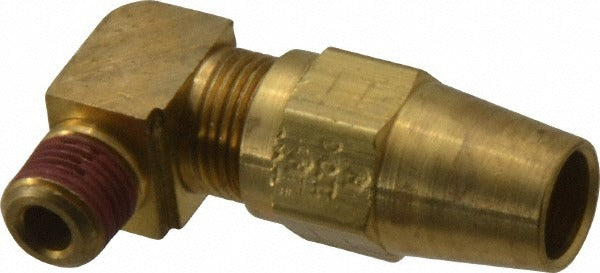

Parker VS269AB-6-2 Compression Male Elbow Brass Nptf

Product Description

The PARKER VS269AB-6-2 is a brass compression tube male elbow fitting designed to connect tubing to a male NPTF threaded port at a 90-degree angle. It features a 1/8-27 NPTF thread and a compression end connection, providing a reliable, vibration-resistant seal in hydraulic, pneumatic, and fluid-transfer lines. Rated to 400 psi maximum working pressure and tested across a temperature range of -65 degrees F to 250 degrees F, this fitting is built to D.O.T. FMVSS571.106 and SAE J246 standards. HVAC technicians, plumbers, and fluid-system mechanics use this type of fitting where a tube-to-port right-angle connection is required.

This fitting is suited for residential and light commercial applications where brake, fuel, air, or refrigerant tubing must transition to a male NPTF threaded port. The compression-style end allows for tool-assisted tube connection without flaring, making it practical in tight installation spaces. Typical applications include control-system tubing runs, instrument lines, and fluid-transfer assemblies where a secure, leak-free 90-degree connection is needed.

Key Features

• Brass construction for corrosion resistance and reliable sealing in fluid and pneumatic systems
• Compression x Male NPTF end connections for secure tube-to-port attachment
• 400 psi maximum working pressure rating
• Rated from -65 degrees F to 250 degrees F for broad operating range
• Meets D.O.T. FMVSS571.106 and SAE J246 standards
• 90-degree elbow geometry for routing tubing in confined spaces

Compatibility

Designed as an OEM-style compression tube male elbow for fluid and pneumatic systems requiring 1/8-27 NPTF threaded port connections with a compression tube end.

Installation Notes

Installation should be performed by a qualified technician familiar with compression fittings and NPTF threaded connections. Depressurize and isolate the system completely before removing or installing any fitting. Use appropriate wrenches on the fitting flats only — do not apply torque to the tubing body. Verify that tubing is cut cleanly and squarely and is fully seated before tightening the compression nut to ensure a leak-free connection.
