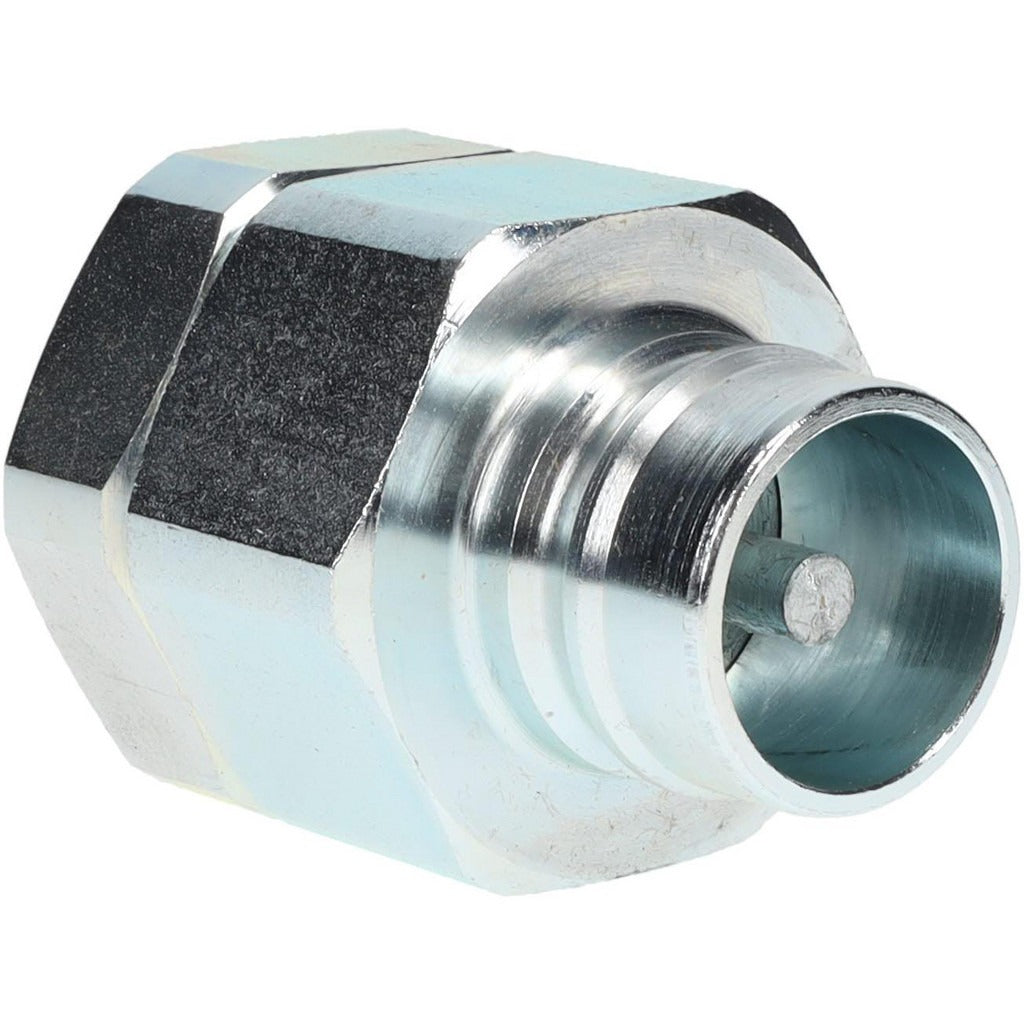

Parker VHN16-16F Hydraulic Hose Valve Fitting 2000 Psi

Product Description

The PARKER VHN16-16F is a straight hydraulic hose valve fitting designed for high-pressure fluid connections in industrial and mobile hydraulic systems. Built from steel with a threaded NPTF connection, this fitting handles a maximum working pressure of 2,000 psi and a temperature range of -35 degrees F to 250 degrees F. The 1-inch hose size and 1-inch thread size make it a direct-fit component for standard hydraulic lines. It measures 2.55 inches in overall length with a 1-inch body diameter. Licensed HVAC techs, plumbers, and fluid power mechanics rely on fittings in this class for leak-free, high-cycle connections under continuous load.

The VHN16-16F is suited for industrial hydraulic lines, mobile equipment hydraulic circuits, and water and coolant lines where a reliable threaded valve connection is required. The straight body geometry simplifies inline installations where routing space is not a constraint. It is a Series H fitting, appropriate for professional-grade fluid power assemblies in both stationary plant equipment and field mobile machinery.

Key Features

• 2,000 psi maximum working pressure for demanding hydraulic service
• NPTF threaded connection for pressure-tight sealing without a separate sealant in many applications
• Straight body shape simplifies inline hose-to-valve connections
• Steel construction provides durability in industrial and mobile equipment environments
• Temperature rated from -35 degrees F to 250 degrees F for broad service conditions
• Series H design for use with industrial hydraulic lines, mobile equipment, and water and coolant lines

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines as stated by the manufacturer. Suitable for applications requiring a 1-inch NPTF threaded straight valve fitting rated to 2,000 psi.

Installation Notes

Installation should be performed by a qualified fluid power technician or mechanic familiar with hydraulic system service. Depressurize and bleed down the hydraulic circuit completely before removing or installing any fitting. Apply thread sealant or tape in accordance with system specifications and the applicable piping code; NPTF threads are designed to seal on the thread form but confirm with system requirements. Inspect mating threads and hose end for damage before assembly and torque to the fitting manufacturer's recommended value using calibrated hand tools.
