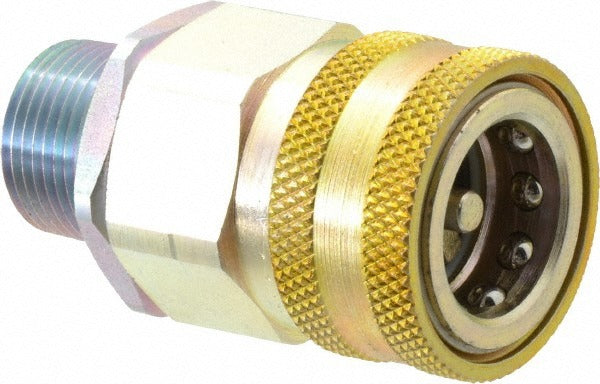

Parker VHC12-12M Hydraulic Hose Mpt Fitting 3/4 in 3500 Psi

Product Description

The PARKER VHC12-12M is a straight male pipe thread (MPT) fitting designed for use in hydraulic hose assemblies. Built from steel with a 3/4-inch NPT threaded connection, this fitting delivers a rated working pressure of 3,500 psi, making it suitable for demanding fluid power applications. At 2.88 inches in overall length and weighing 0.72 pounds, it is a compact, robust component used to terminate or join hydraulic hose to threaded ports. Installation is typically performed by hydraulic system technicians and equipment mechanics working on industrial or mobile equipment.

This fitting is rated for use on industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines. The straight body profile and NPT thread form make it appropriate for standard port connections where a direct, in-line termination is required. The 3/4-inch hose size and 0.75-inch coupler size correspond to common mid-range hydraulic hose assemblies found on construction, agricultural, and industrial machinery.

Key Features

• Straight MPT configuration with 3/4-inch NPT thread for direct port connections
• 3,500 psi maximum working pressure suits high-demand hydraulic circuits
• Steel construction provides durability under pressure and mechanical stress
• Compatible with industrial hydraulic lines, mobile equipment, and water and coolant lines
• Compact overall length of 2.88 inches for installations with limited clearance
• Series H designation for straightforward product-line identification and ordering

Compatibility

Designed for use with industrial hydraulic lines, mobile equipment hydraulic systems, and water and coolant lines requiring a 3/4-inch NPT straight MPT fitting at 3,500 psi working pressure.

Installation Notes

Installation should be performed by a qualified hydraulic technician or mechanic. Always depressurize and bleed the hydraulic system fully before removing or installing any fittings. Apply appropriate thread sealant compatible with hydraulic fluid to NPT threads before assembly. Verify hose and port thread sizes match before torquing to avoid cross-threading or seat damage.
