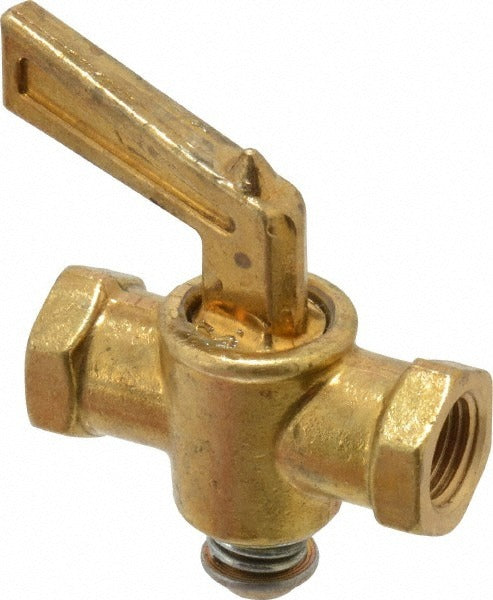

Parker V403P-2-2 Drain Cock Shutoff Valve 1/8 in Nptf

Product Description

The PARKER V403P-2-2 is a brass drain cock shutoff valve with female pipe to female pipe connections on both ends. It is designed for draining or isolating fluid lines in plumbing and fluid-handling systems where a compact, low-pressure manual valve is required. The valve uses NPTF threads sized at 1/8-27 and is rated for a maximum working pressure of 30 psi. The all-brass body provides corrosion resistance suitable for water and light-duty fluid service. Plumbers and HVAC technicians commonly install this type of valve at low points in piping systems, boiler drain ports, and condensate or equipment drain lines.

The V403P-2-2 is suited for residential and light commercial plumbing applications where a small-bore manual drain or shutoff point is needed. Typical installations include boiler blowdown ports, compressed air drain points, hydronic system drain-downs, and equipment isolation points. The 1/8-27 NPTF thread size makes it appropriate for small-diameter pipe connections in tight spaces. The valve is packaged individually and ships as a single unit.

Key Features

• NPTF female pipe to female pipe connection on both ends for leak-resistant threaded joints
• 1/8-27 thread size fits standard small-bore piping drain ports
• 30 psi maximum working pressure rating
• Brass body construction for corrosion resistance in water and light fluid service
• Compact form factor suits tight installation spaces

Compatibility

Designed as an OEM-style replacement or new-installation drain cock for small-bore female NPTF pipe connections in residential and light commercial plumbing and hydronic systems.

Installation Notes

Installation is performed by a licensed plumber or qualified HVAC technician. Shut off the water or fluid supply and relieve system pressure before removing or installing this valve. Apply PTFE tape or thread sealant to NPTF threads per IPC guidelines. Do not exceed the 30 psi rated working pressure or use this valve in applications below the minimum rated working temperature of 32 degrees F.
