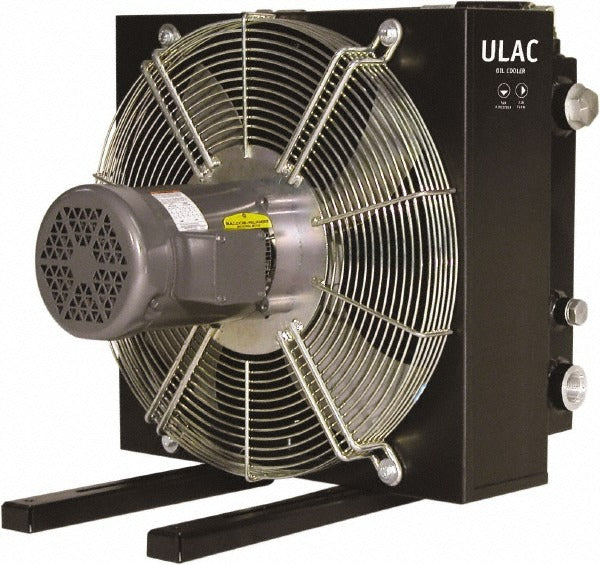

Parker ULAC-023DM000SW Liquid-to-air Heat Exchanger 1560 Btu/h

Product Description

The PARKER ULAC-023DM000SW is a liquid-to-air brazed aluminum heat exchanger designed for process equipment cooling applications. Rated at 1,560 BTU/h, this unit handles thermal loads from hydraulic oil circuits and ethylene glycol/water mixture coolant loops. The fluid circuit is constructed from aluminum with a brazed core for durable heat transfer performance. Connections are 1-inch SAE O-Ring Boss threaded ports, and the unit includes a single fan mounting point. Maximum working pressure is 300 psi, and the unit is rated for service up to 250 degrees F. Mechanical, hydraulic, and industrial service technicians working on process cooling systems are the typical installers.

This heat exchanger is suited for stationary process equipment requiring active liquid-to-air cooling. Common applications include hydraulic power unit oil cooling and glycol-based coolant heat rejection in light industrial or manufacturing environments. The single fan mount accepts a direct-drive fan for forced-air cooling across the brazed aluminum core. At 24 inches high, 22.8 inches wide, and 22.2 inches deep, this unit fits standard process skid and enclosure cooling configurations where compact footprint matters.

Key Features

• Brazed aluminum fluid circuit construction for corrosion resistance and efficient heat transfer
• 1,560 BTU/h cooling capacity for light-duty process thermal management
• 1-inch SAE O-Ring Boss connections for leak-resistant threaded plumbing integration
• 300 psi maximum working pressure for pressurized hydraulic and coolant circuit use
• 250 degrees F maximum temperature rating for high-operating-temperature fluid streams
• Single fan mounting point for straightforward forced-air fan assembly installation

Compatibility

Designed for liquid-to-air process equipment cooling applications handling oils and ethylene glycol/water mixture coolants. Compatible with systems using 1-inch SAE O-Ring Boss threaded fluid connections and standard fan-mount configurations.

Installation Notes

Installation is typically performed by hydraulic system technicians or industrial mechanical service personnel. Depressurize and drain the fluid circuit fully before disconnecting or installing any heat exchanger connections. Follow applicable facility safety lockout/tagout procedures before mounting or wiring any associated fan motor. Ensure fan airflow direction and mounting clearances meet the system manufacturer's requirements before returning the circuit to service.
