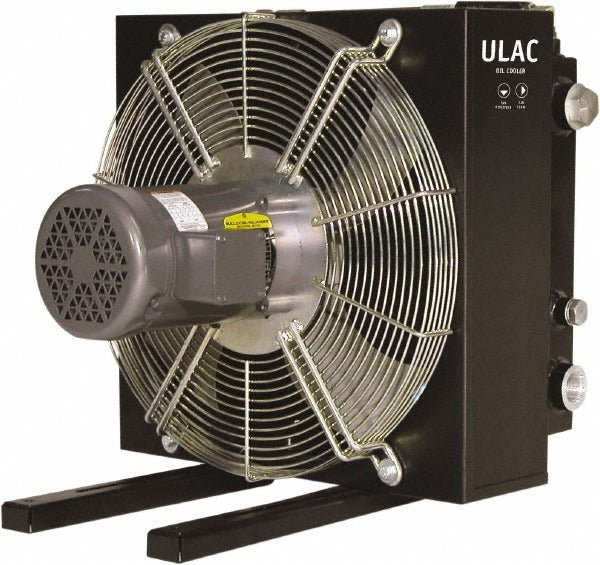

Parker ULAC-016BM000SW Liquid-to-air Heat Exchanger

Product Description

The PARKER ULAC-016BM000SW is a liquid-to-air aluminum brazed heat exchanger designed for process equipment cooling applications. It transfers heat from liquid circuits to ambient air, handling oils and ethylene glycol/water mixtures up to a maximum temperature of 250 degrees F and a maximum working pressure of 300 psi. Rated at 1,160 BTU/h, the unit features a single fan mounting point and SAE O-Ring Boss connections sized at 1 inch. At 53 pounds, it is a compact but substantial unit suited for industrial and OEM process cooling installations. HVAC/R technicians and industrial equipment service professionals are the typical installers.

This heat exchanger is intended for process equipment cooling duties where oil or glycol-based fluid circuits require continuous heat rejection to ambient air. Typical applications include hydraulic oil cooling, cutting fluid cooling, and ethylene glycol/water mixture cooling on stationary industrial and OEM equipment. The single fan mount allows direct integration of an axial fan to drive airflow across the aluminum core. Its brazed aluminum fluid circuit construction suits environments where weight, corrosion resistance, and thermal efficiency are priorities.

Key Features

• Liquid-to-air design rejects heat from oils and ethylene glycol/water mixtures to ambient air
• 1,160 BTU/h heat rejection capacity
• Maximum operating temperature of 250 degrees F and maximum working pressure of 300 psi
• 1-inch SAE O-Ring Boss connections with SAE thread interface for leak-resistant hydraulic-grade fittings
• Single fan mounting point for direct axial fan integration
• Aluminum brazed fluid circuit construction for corrosion resistance and efficient thermal transfer
• Steel style frame/housing for structural rigidity

Compatibility

Designed as an OEM-style liquid-to-air heat exchanger for process equipment requiring oil or ethylene glycol/water mixture cooling with SAE O-Ring Boss hydraulic connections and a single fan mount configuration.

Installation Notes

Installation is typically performed by industrial equipment technicians or licensed HVAC/R service professionals familiar with process cooling systems. De-energize all power to fan motors and depressurize and drain the fluid circuit fully before disconnecting existing fittings or removing the heat exchanger. SAE O-Ring Boss fittings require proper O-ring seating and torquing to manufacturer specifications using appropriate hydraulic assembly tools. Verify that the selected fan motor and blade assembly are rated for the airflow and static pressure requirements of the application before mounting.
